SMT1500R2X122 Technical Specifications

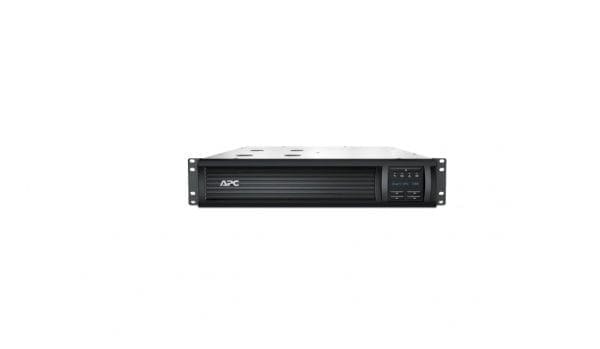

APC Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1500 LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial, 1 x USB
Cable Details
Cables Included :Serial cable – external, Power cable – integrated – 8 ft, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :120 volt
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1 kilograms per millimetere
Power Capacity (VA) :1500 volt ampere per kilogram 1500VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-15
Input Connector Qty :1
Output Connector Qty :6
Surge Suppression :Yes
Surge Energy Rating :459 joules
Circuit Protection :Circuit breaker
Power Device Features :Automatic Voltage Regulation (AVR), Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Run Time (Up To) :7 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :26 min at half load, 7 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :RoHS Exemption 7b, CSA, UL 1778, UL 1449, REACH, FCC Part 15 A
Dimensions & Weight
Width :17 inch
Depth :18 inch
Height :3.5 inch
Weight :63.14 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.4 inch
Shipping Depth :23.7 inch
Shipping Height :9.9 inch
Shipping Weight :70.35 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :46 dBA
