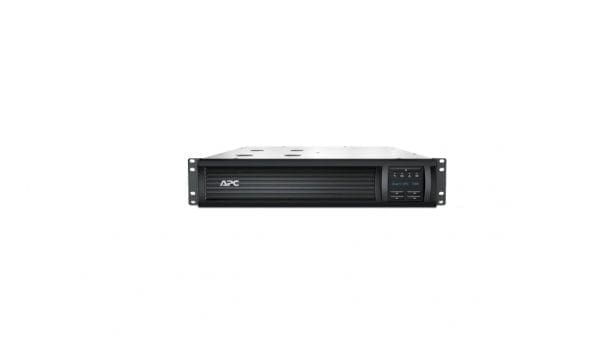

SMT1500R2X180 APC Smart-UPS 1500VA LCD RM 2U 120V

SKU: SMT1500R2X180 Categories: , Tags: , ,

SMT1500R2X180 Overview

Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

SMT1500R2X180 Technical Specifications

APC Smart-UPS 1500VA LCD RM 2U 120V with AP9630

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
Output

Max Configurable Power (Watts)
1.0kWatts / 1500VA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type Sine wave
Transfer Time
4ms typical : 8ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations 82 – 144V
Input voltage adjustable range for mains operation 75 – 154V
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery APCRBC133
Expected Battery Life (years) 4 – 6
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 432
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
SmartSlot, USB
Pre-Installed SmartSlot™ Cards AP9630
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
3.5inches (89MM, 8.9CM)
Maximum Width
17.0inches (432MM, 43.2CM)
Maximum Depth
18.0inches (457MM, 45.7CM)
Net Weight
63.0lbs. (28.64KG)
Shipping weight
70.2lbs. (31.91KG)
Shipping Height
9.88inches (251MM, 25.1CM)
Shipping Width
23.38inches (594MM, 59.4CM)
Shipping Depth
23.75inches (603MM, 60.3CM)
Color Black
Units per Pallet 16.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
46.0dBA
Online thermal dissipation
90.0BTU/hr
