SMT1500RM1U Technical Specifications

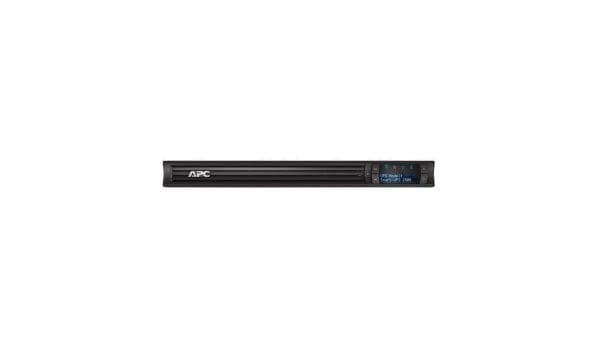

APC Smart-UPS 1500VA LCD RM UPS 1000 W 1440 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1500VA LCD RM
Country Kits :Europe, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Serial cable – external, Power cable 8 ft, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1000 watt
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Max Electric Current :12 ampere
Voltage Required :AC 120 volt
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :Cold-start function, Noise filtering, Automatic Voltage Regulation (AVR), LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :4 Hours
Run Time Details
Run Time (Up To) :5 min at full load, 17 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :1
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Part 15 A, UL 1778, UL 1449, RoHS, REACH, CSA
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :26.2 inch
Height :1.7 inch
Weight :53.11 lbs
Dimensions & Weight (Shipping)
Shipping Width :22.6 inch
Shipping Depth :31.3 inch
Shipping Height :7.9 inch
Shipping Weight :64.13 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :46 dBA
