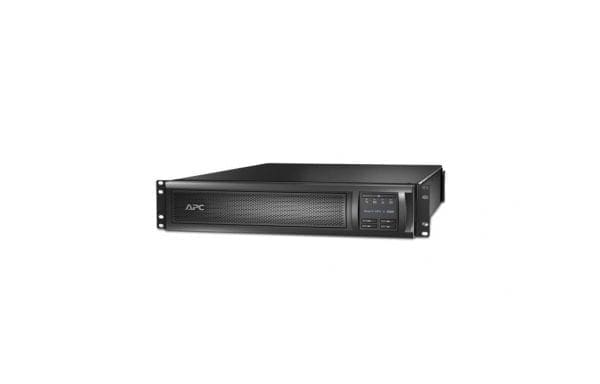

SMX3000RMHV2UNC APC Smart-UPS X 3000VA Rack/Tower 200-240V

SMX3000RMHV2UNC Technical Specifications

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :3000 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet 10/100
Remote Management Protocol :SSH, SSH-2, SNMP 1, Telnet, SNMP 3, HTTP, HTTPS
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off)
Cable Details
Cables Included :Serial cable, Power cable 8 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 230 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :2.7 kilograms per millimetere
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208/220/230/240 volt
Input Voltage Range :AC 141 – 255 / 160 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C20, Power BS 1363A, Power CEE 7/7
Output Connector Qty :9
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, LCD display, LED indicators, Emergency power off
Power Output Connectors Details
Power Output Connectors Details :1 x power IEC 60320 C19, 8 x power IEC 60320 C13
Battery
Run Time (Up To) :6.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :6.3 min at full load, 18 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :FCC Part 15 A, REACH, UL 1778, EN 50091-1, EN 60950, UL 1449, C-Tick, EN55022 Class A, RoHS Exemption 7b, EN 50091-2, IRAM, CSA, GOST, VDE
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Weight :82.23 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Shipping Weight :100.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
