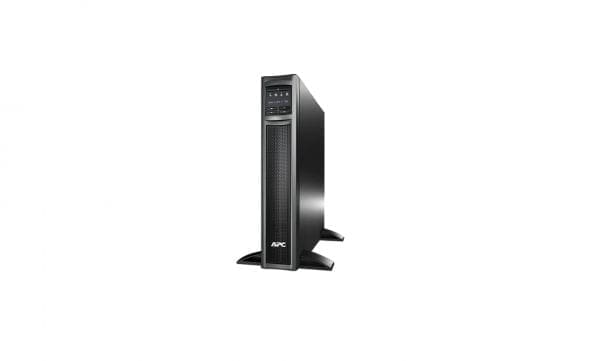

SMX750 APC Smart-UPS X 750VA Rack/Tower LCD 120V

SMX750 Technical Specifications

APC Smart-UPS X 750VA Rack/Tower LCD 120V

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :750 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external, Power cable 8 ft, Serial cable – external
Software
Type :APC PowerChute Business Edition
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :600 watt
Power Capacity (VA) :750 volt ampere per kilogram 750VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :645 joules
Power Device Features :Automatic Voltage Regulation (AVR), LCD display, Audible alarm, Overcurrent protection, Emergency power off
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15
Battery
Run Time (Up To) :14.2 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :14.2 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :cUL, UL 1449, RoHS, UL 1778, REACH
Dimensions & Weight
Width :3.5 inch
Depth :19.3 inch
Height :17 inch
Weight :48.61 lbs
Dimensions & Weight (Shipping)
Shipping Width :9.7 inch
Shipping Depth :24.4 inch
Shipping Height :23.2 inch
Shipping Weight :58.42 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :40 dBA
