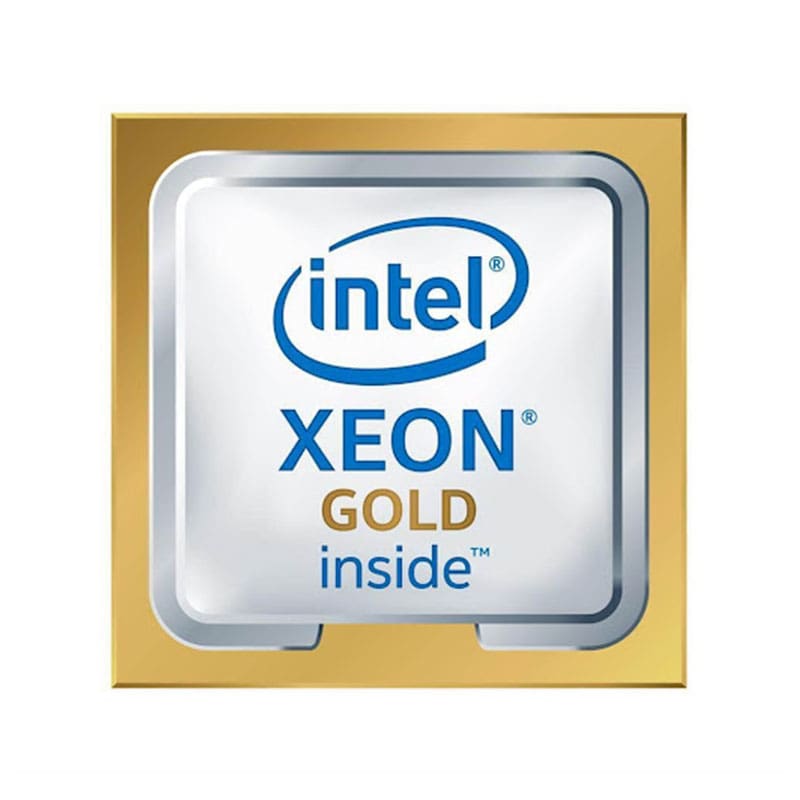

SRF8Y Intel Xeon Gold 6242 16-Core 2.80GHz 22MB Cache Processor

SRF8Y Technical Specifications

Intel Xeon Gold 6242 16-Core 2.80GHz 22MB Cache Processor

Brand Intel
Part No. SRF8Y
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6242
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 16
# of Threads 32
Clock Speed 2.80 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 22 MB
Thermal Power 150 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 85 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
