SRT10KRMXLT Technical Specifications

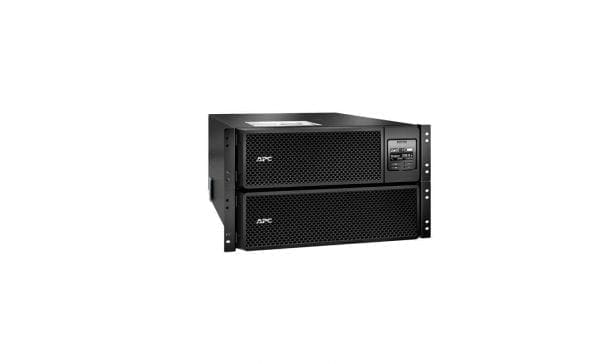

APC Smart-UPS On-Line 10000VA RM UPS 10kW 10000VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS On-Line
Model :10000VA RM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Output Connector Type :Hardwire 3-wire (1PH + N + G), Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (1PH + N + G), 2 x power NEMA L6-30, 4 x power NEMA L6-20
Battery
Run Time (Up To) :3.7 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :6
Compliant Standards :FCC Part 15 A, RoHS, CSA C22.2 No. 107.3, IP20, REACH, UL 1778, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.1 inch
Height :10.4 inch
Weight :245.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :3.3 ft
Shipping Height :18.1 inch
Shipping Weight :286 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
