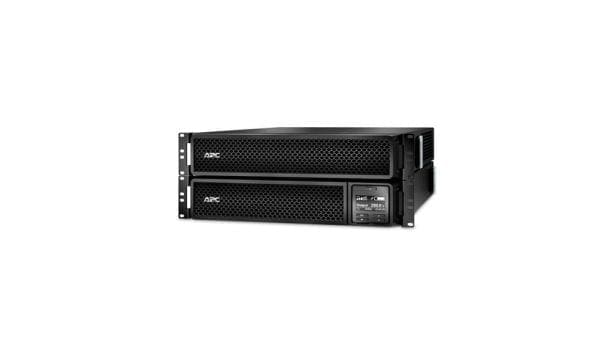

SRT3000RMXLT-5KTF APC Smart-UPS SRT 3000VA RM
SRT3000RMXLT-5KTF Overview
The APC Smart-UPS 3000VA RM Step-Down Transformer is a great choice for small to medium-size businesses for power protection. This compact 4U Smart UPS offers high-density, double-conversion on-line power protection for servers, networks, medical labs and light industrial applications. At full load, its recharge time is 3 hours. Its battery is leak-proof, maintenance-free and sealed. With a capacity of 3000 VA, this external power supply is a savior for business-critical systems. This 208V to 120V step-down transformer comes with a 6 ft. cable and several power output connectors for added convenience.
$4,616
SRT3000RMXLT-5KTF Technical Specifications
APC Smart-UPS SRT 3000VA RM 208V to 120V 2U Step-Down Transformer
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :3000VA RM
Bundled with :208V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type A, 1 x EPO (emergency power off), 1 x serial – RJ-45
Cable Details
Cables Included :Power cable – integrated – 6 ft, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120/208 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-20
Input Connector Qty :1
Output Connector Type :Power NEMA L6-20, Power NEMA 5-20
Output Connector Qty :14
Surge Suppression :Yes
Surge Energy Rating :340 joules
Power Device Features :Audible alarm, LCD display, Internal bypass
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-20, 12 x power NEMA 5-20
Battery
Run Time (Up To) :3.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :3.8 min at full load, 11.4 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails
Rack Mounting Kit :Included
Height (Rack Units) :4
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :RoHS, REACH, FCC Part 15 A, UL 1778, IP20
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :25 inch
Height :6.7 inch
Weight :164 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.5 inch
Shipping Depth :37.5 inch
Shipping Height :19.7 inch
Shipping Weight :198 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
