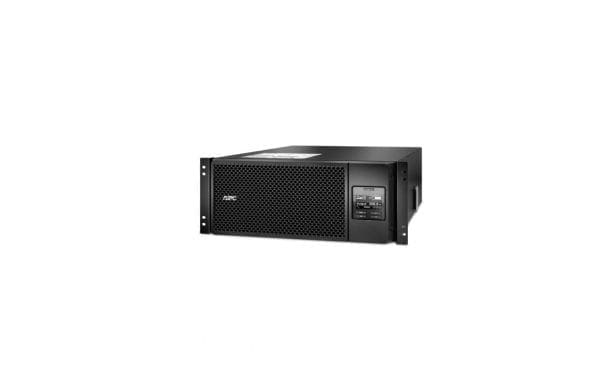

SRT6KRMXLT-IEC APC Smart-UPS SRT 6000VA RM 208V IEC

SRT6KRMXLT-IEC Technical Specifications

APC Smart-UPS SRT 6000VA RM 208V IEC

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :6000VA RM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x serial – RJ-45, 1 x EPO (emergency power off)
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/220/240 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208/220/240 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Input Connector Qty :1
Output Connector Qty :13
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power IEC 60320 C13, 2 x IEC connector, 4 x power IEC 60320 C19, 1 x hardwire 3-wire (HN + G)
Battery
Run Time (Up To) :2 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :8 min at half load, 2 min at full load
UPS
Batteries Qty :2
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :4
Compliant Standards :REACH, UL 1778, CSA C22.2 No. 107.3, RoHS, IP20, FCC Part 15 A
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :6.9 inch
Weight :134.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :14.6 inch
Shipping Weight :150 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
