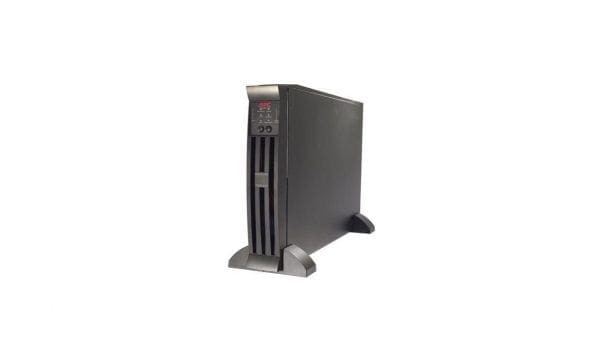

SUM3000RMXL2U APC Smart-UPS XL Modular 3000VA
SUM3000RMXL2U Overview
APC Smart-UPS® XL protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS® XL’s can be configured with up to 10 additional battery packs – for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations – and the Smart-UPS® XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi (“hotspots”, WLAN/ WWAN, and mixed wireless), and data enabled PBX’s are a few of the applications driving the need for Smart-UPS® XL. APC Smart-UPS® XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM’s, telecommunications systems and other mission-critical applications requiring longer runtime.
$2,899
SUM3000RMXL2U Technical Specifications
APC Smart-UPS XL Modular 3000VA Rackmount/Tower UPS
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :XL Modular 3000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB, RS-232
Remote Management Protocol :SNMP, HTTP
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x USB
Cable Details
Cables Included :USB cable, Power cable 10 ft, Serial cable
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Power Provided :2.85 kilograms per millimetere
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 147 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-30
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15, Power NEMA 5-20
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :LED indicators, Internal bypass, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20 (UPS and surge), 6 x power NEMA 5-15 (UPS and surge)
Battery
Run Time (Up To) :3.5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :3.5 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Part 15 A, UL 1778, BSMI, NOM, UL 1449, VCCI, CSA
Dimensions & Weight
Width :17 inch
Depth :26.7 inch
Height :3.4 inch
Weight :103.18 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :38.6 inch
Shipping Height :9.8 inch
Shipping Weight :125.22 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
