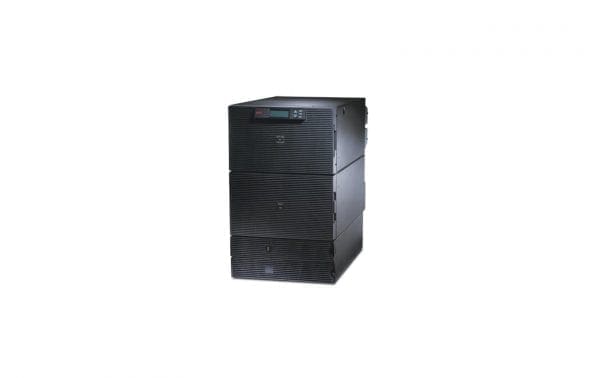

SURT15KRMXLT-1TF10K APC Smart-UPS RT 15KVA RM

SURT15KRMXLT-1TF10K Overview

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.

$18,712

Buy Now
Availability: In Stock
SKU:SURT15KRMXLT-1TF10K
Brand:

SURT15KRMXLT-1TF10K Technical Specifications

APC Smart-UPS RT 15KVA RM 208V, 208V/120V 10KVA Step down Transformer

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS RT
Model :15KVA RM
Bundled with :208V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, RS-232
Remote Management Protocol :HTTP, SNMP
Expansion Slots
Expansion Slots :1 SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45
Cable Details
Cables Included :Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 220/230/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :12 kilograms per millimetere
Power Capacity (VA) :15000 volt ampere per kilogram 15000VA
Max Electric Current :83 ampere
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 160 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Type :Hardwire 4-wire (2PH+N+G), Power NEMA L14-30, Power NEMA L6-30, Power NEMA L5-20, Power NEMA L6-20
Output Connector Qty :11
Power Device Features :Audible alarm, Internal bypass, LED display, Emergency power off
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-30, 2 x power NEMA L14-30, 4 x power NEMA L6-20, 1 x hardwire 4-wire (2PH+N+G), 2 x power NEMA L5-20
Battery
Voltage Provided :192 volt
Run Time (Up To) :8.3 minute (time unit)
Load Type :At full load
Recharge Time :2.5 Hours
Run Time Details
Run Time (Up To) :8.3 min at full load
UPS
Batteries Qty :4
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :12
Compliant Standards :UL 1449, UL 1778
Dimensions & Weight
Width :17 inch
Depth :30.4 inch
Height :27.9 inch
Weight :767.2 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :39.4 inch
Shipping Height :55.1 inch
Shipping Weight :967.82 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Sound Emission :50 dBA
