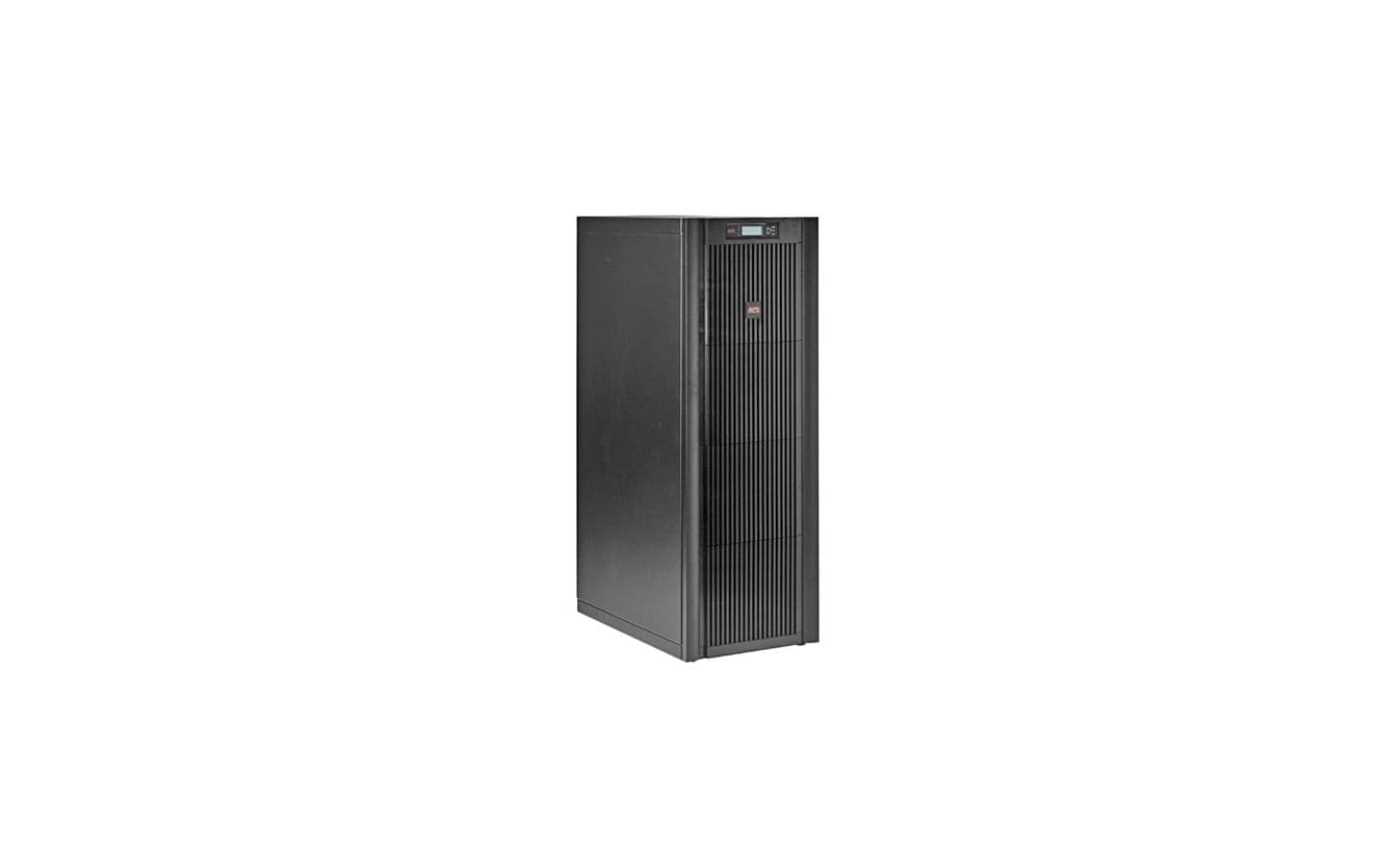

SUVTP15KF4B4S APC Smart-UPS VT 15kVA 208V w/4 Batt Mod

SUVTP15KF4B4S Overview

APC Smart-UPS VT 15kVA 208V w/4 Batt Mod, Start-Up 5X8, Int Maint Bypass, Parallel Capable
Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.
Includes: Battery modules ship installed, Bolt Down Brackets, CD with software, Installation Guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual

$12,968

Buy Now
Availability: In Stock
SKU:SUVTP15KF4B4S
Brand:

SUVTP15KF4B4S Technical Specifications

APC Smart-UPS VT 15kVA 208V w/4 Batt Mod, Start-Up 5X8, Int Maint Bypass, Parallel Capable

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS VT
Model :15kVA with 4 Battery Modules
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet 10/100
Remote Management Protocol :HTTP, HTTPS, WAP, SNMP, Telnet
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120/208/220 volt
Voltage Provided Margin :± 5%
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :12 kilograms per millimetere
Power Capacity (VA) :15000 volt ampere per kilogram
Voltage Required :AC 208/220 volt
Input Voltage Range :AC 160 – 240 V
Frequency Required :40 – 70 hertz
Input Wiring :3-phase
Input Connector Type :Hardwire 5-wire (3PH + N + G)
Input Connector Qty :1
Output Connector Type :Hardwire 5-wire (3PH + N + G), Terminal block (screw)
Output Connector Qty :2
Surge Suppression :Yes
Circuit Protection :Circuit breaker
Power Device Features :Built-in maintenance bypass, Emergency power off, Parallel Capability, LCD display, Built-in static bypass, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x terminal block, 1 x hardwire 5-wire (3PH + N + G)
Battery
Run Time (Up To) :27 minute (time unit)
Load Type :At full load
Recharge Time :5 Hours
Run Time Details
Run Time (Up To) :27 min at full load
UPS
Batteries Qty :4
Supported Batteries Qty :4
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Bolt down brackets
Compliant Standards :ISO 14001, NEMA Type 1, cUL, UL 1778, ISO 9001
Dimensions & Weight
Width :20.6 inch
Depth :32 inch
Height :59.1 inch
Weight :1320.56 lbs
Dimensions & Weight (Shipping)
Shipping Width :25.6 inch
Shipping Depth :41.7 inch
Shipping Height :64.6 inch
Shipping Weight :1388.9 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :54 dBA
