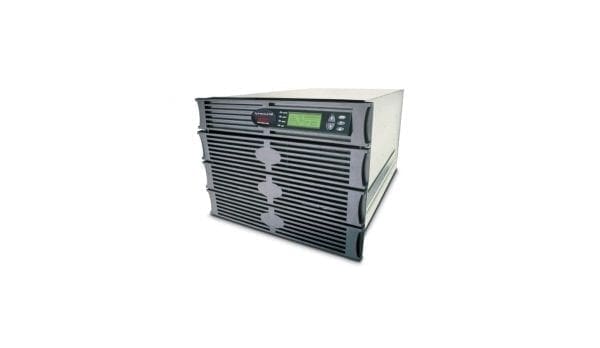

SYH4K6RMT APC Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V

SYH4K6RMT Technical Specifications

APC Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V

Manufacturer :APC
Brand :APC
Product Line :APC Symmetra RM
Model :4kVA Scalable to 6kVA N+1
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :Power array
Networking
Remote Management Interface :Ethernet 10/100
Remote Management Protocol :HTTP, SNMP, Telnet
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x LAN – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable 6 ft
Software
Type :APC PowerChute Symmetra Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 208/240 volt
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :2800 watt
4000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 155 – 276 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L6-30
Input Connector Qty :1
Output Connector Type :Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :3
Surge Suppression :Yes
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-20, 1 x power NEMA L6-30
Battery
Run Time (Up To) :12.4 minute (time unit)
Load Type :At full load
Recharge Time :4 Hours
Run Time Details
Run Time (Up To) :12.4 min at full load
UPS
Batteries Qty :2
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :8
Compliant Standards :FCC Class A certified
Features :Audible alarm
Dimensions & Weight
Width :19 inch
Depth :28.7 inch
Height :14 inch
Weight :229.5 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :60 dBA
