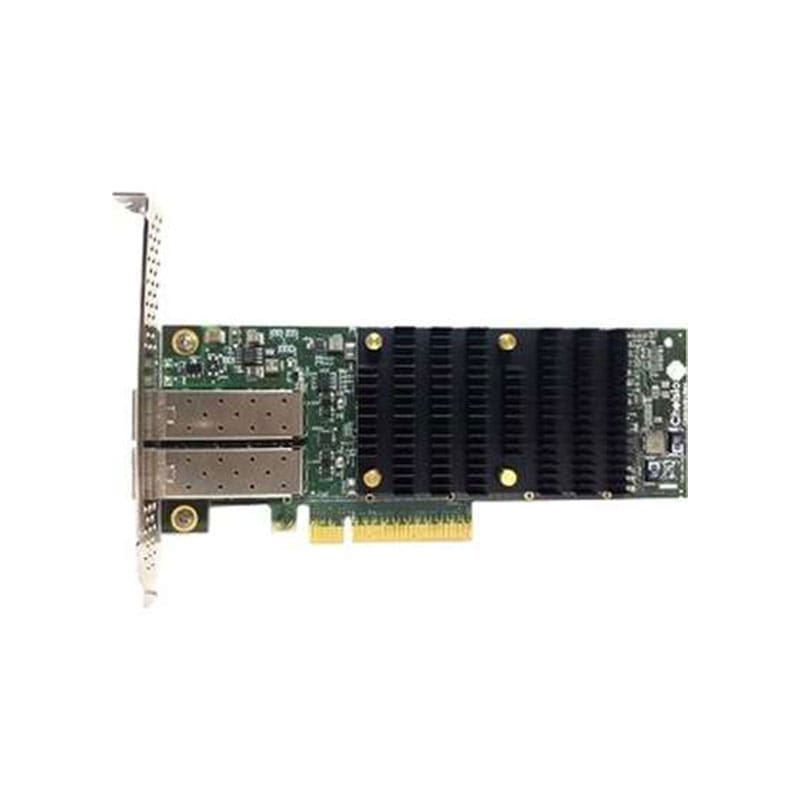

T6225-CR Chelsio T6225-CR Network Adapter PCIe 3.0 x8 25 Gigabit SFP28 x 2
T6225-CR Overview
Chelsio’s is a dual port 1/10/25Gb Ethernet Unified Wire Adapter, with a PCI Express 3.0 x8 host bus interface, optimized for storage, cloud computing, HPC, virtualization and other datacenter networking applications.
T6225-CR runs all the host software of its predecessor, T5, as-is, thus enabling leveraging of all the prior software investment. It offers all the features of T5, and in addition adds support for integrated offload of IPsec, TLS/SSL, DTLS and SMB 3.X crypto.
$579
T6225-CR Technical Specifications
Chelsio T6225-CR Network Adapter PCIe 3.0 x8 25 Gigabit SFP28 x 2
Brand: Chelsio
Product Line: Chelsio
Manufacturer: Chelsio
Network & Communication
Cable Type: Ethernet 25GBase-LR, Ethernet 25GBase-SR
Connectivity Technology: Wired
Data Transfer Rate: 25 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x8
MAC Address Table Size: 512 entries
Network Standard: iSCSI, iWARP, TCP/IP, UDP/IP
PCI Specification Revision: PCI 3.0
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 25GBase-SR/LR – SFP28
Port Quantity: 2
Network & Adapter Ports: 25 Gigabit SFP28
Power
Power Consumption Operational: 13 watt
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95%
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications & Listings
Compliant Standards: RoHS
ENERGY STAR Certified: No
