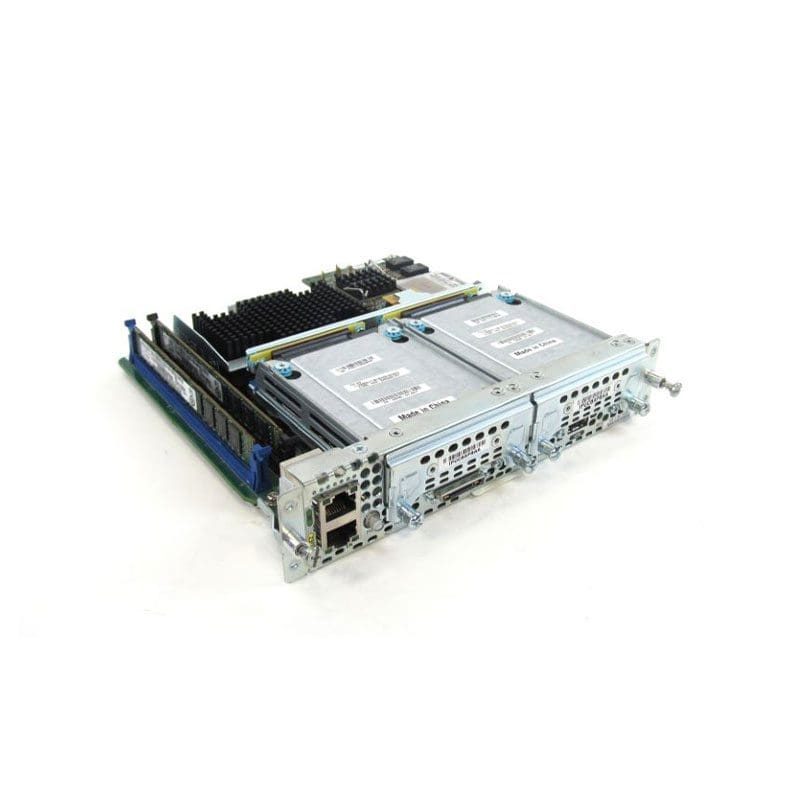

UCS-E140S-M2/K9 Cisco UCS E140S M2 – blade – Xeon E3-1105CV2 1.8 GHz
UCS-E140S-M2/K9 Overview
Cisco UCS E-series server delivers Intel Xeon processor in combination with integrated remote lights-out management in a blade server form factor. This powerful processor delivers multiple cores and threads in a reduced-power envelope, providing improved performance and better energy efficiency than preceding models, making it an excellent platform for introducing virtualization into the branch office. The zero-footprint form factor of the Cisco UCS E-series server in conjunction with the Intel Xeon processor offers significantly lower total cost of ownership (TCO), increased business agility, and greater reliability when compared to standalone rack-mount and tower servers.
$2,999
UCS-E140S-M2/K9 Technical Specifications
Cisco UCS E140S M2 – blade – Xeon E3-1105CV2 1.8 GHz
Audio Input
Type :None
Audio Output Details
Speaker Type :None
Bay Provided
Form Factor :2.5″
Free Qty :2
Total Qty :2 Bays
Cache Memory
Installed Size :8 MB
Installed Size :8
Per Processor Size :8 MB
Per Processor Size :8
Type :L3 cache
Chassis
Form Factor :Blade
Hot-Swap Bays Qty :2
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :7.5 in
Height :1.6 in
Weight :2.43 lbs
Width :7.4 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 95%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :Memory
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Series: E140
Model :E140S M2
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :KVM
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Type :USB 2.0
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Form Factor :Integrated
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
Processor
Clock Speed :1.8 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :1
Number of Cores :Quad-Core
Processor Main Features :Enhanced Intel SpeedStep Technology, Hyper-Threading Technology, Intel Execute Disable Bit, Intel Virtualization Technology
Processor Number :E3-1105CV2
Type :Xeon
RAM
Installed Size :8 GB
Installed Size :8
Max Supported Size :16 GB
Max Supported Size :16
Technology :DDR3 SDRAM
