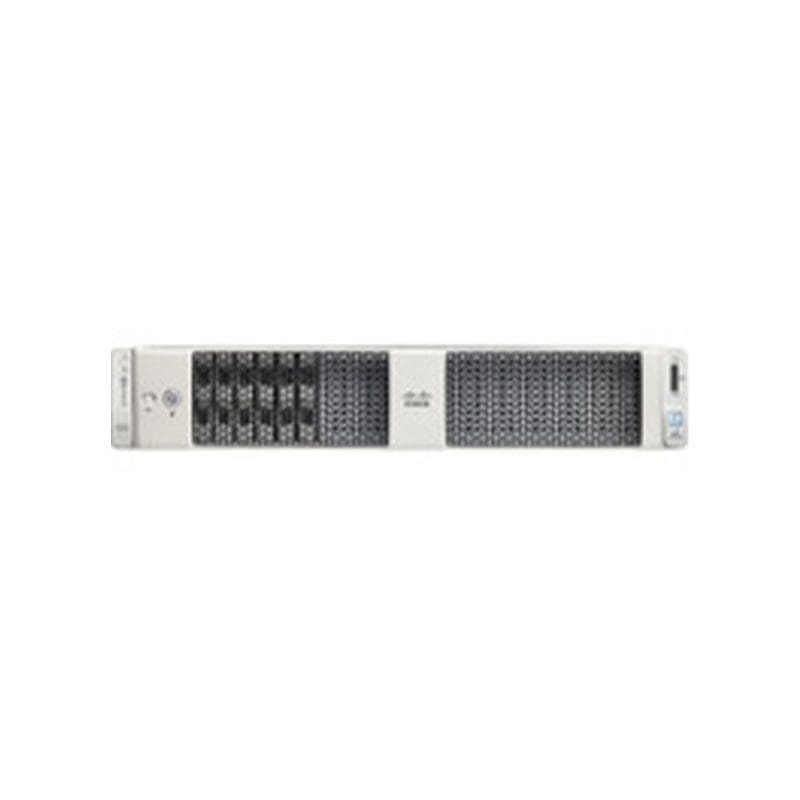

UCS-SP-C240M5-F2 Cisco Systems SP C240 M5SX 2X6128 6X32GB
UCS-SP-C240M5-F2 Overview
UCS C240 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
$13,099
UCS-SP-C240M5-F2 Technical Specifications
Cisco Systems SP C240 M5SX 2X6128 6X32GB
General Information
Product Name SP C240 M5SX 2X6128 6X32GB Memory VIC1387
Manufacturer Part Number UCS-SP-C240M5-F2
Product Series C240 M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Hot Swap Bays Yes
Memory
Standard Memory 192 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24
Number of Occupied Memory Slots 6
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6128
Processor Core Hexa-core (6 Core)
Processor Speed 3.40 GHz
Physical Characteristics
Form Factor Rack-mountable
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
