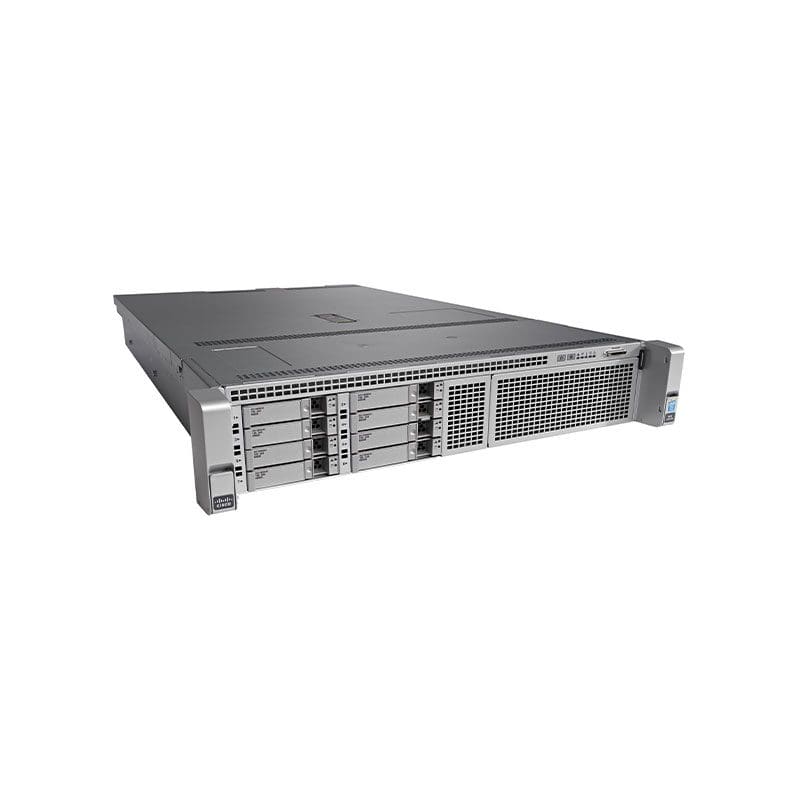

UCS-SPC240M4L-B-S1 Cisco UCS SmartPlay Select C240 M4L

UCS-SPC240M4L-B-S1 Technical Specifications

Cisco UCS SmartPlay Select C240 M4L

Bay Provided
Form Factor :3.5″ LFF
Free Qty :12
Total Qty :12
Cable
Connectivity Details Type :Video / USB / serial cable
Cache Memory
Installed Size :50 MB
Installed Size :50
Per Processor Size :25 MB
Per Processor Size :25
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :12
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :8.9 cm LFF
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select C240 M4L Standard 1
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Qty :1
Type :VGA
Qty :2
Type :USB 3.0
Type :LAN (10 Gigabit Ethernet) (SFP+)
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Mainboard
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1, UL 60950-1 Second Edition
Height (Rack Units) :2
Included Accessories :12x 3.5 inch HDD blanking panel, 2 x CPU Heatsink, Cisco Ball Bearing Rail Kit, CPU asset tab ID label, Riser card
