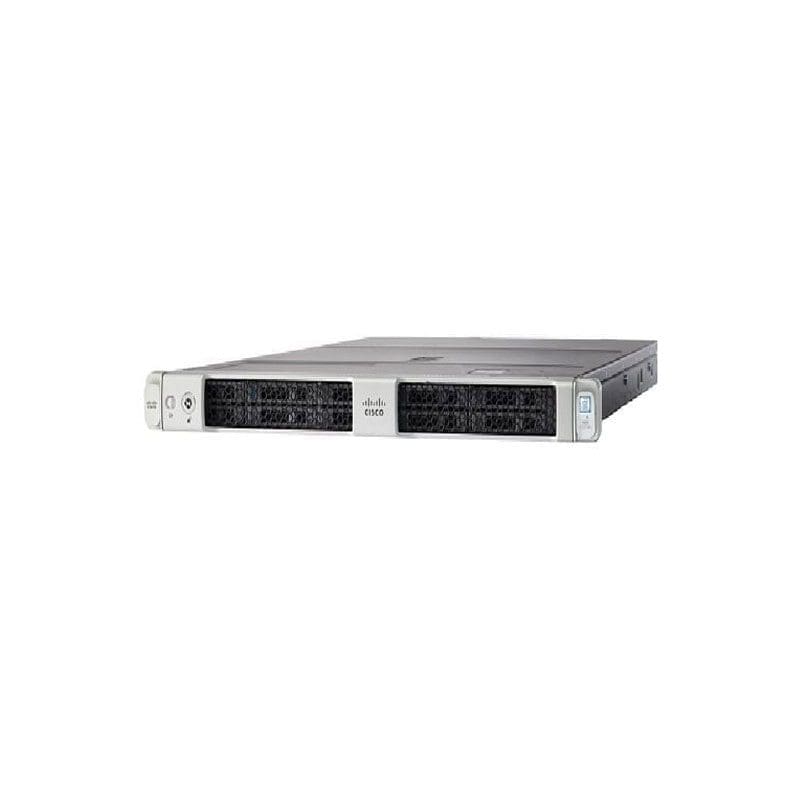

UCS-SPR-C220M5-A4 Cisco Systems LE Ranksp C220 M5SX 2X4116

UCS-SPR-C220M5-A4 Overview

The UCS C220 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

$5,799

Buy Now
Availability: In Stock
SKU:UCS-SPR-C220M5-A4
Brand:

UCS-SPR-C220M5-A4 Technical Specifictions

Cisco Systems LE Ranksp C220 M5SX 2X4116

General Information
Product Name LE Ranksp C220 M5SX 2X4116 2X32GB Memory
Manufacturer Part Number UCS-SPR-C220M5-A4
Product Series C220 M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swappable Bays Yes
Memory
Standard Memory 64 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC

Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4116
Processor Core Dodeca-core (12 Core)
Processor Speed 2.10 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
