UCS-SPR-C240M4-P2 Technical Specifications

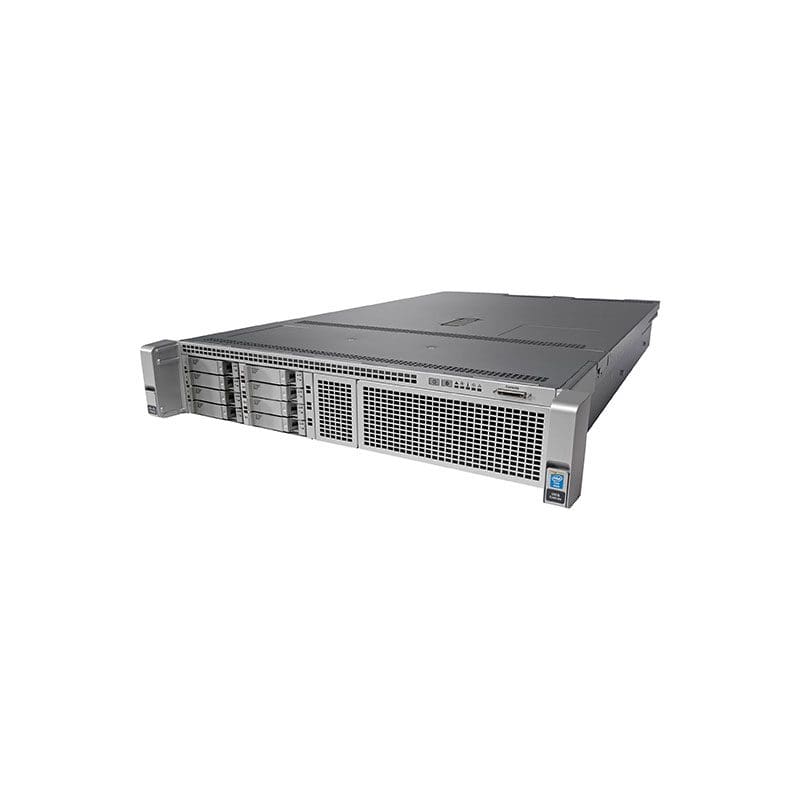

Cisco Systems Ucs C240M4SX with 2XE52680V3
General Information
Product Name Ucs C240M4SX with 2XE52680V3 2X16GB Mraid
Manufacturer Part Number UCS-SPR-C240M4-P2
Product Series C240 M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
Serial Attached SCSI (SAS)
Serial SATA
RAID Supported Yes
Memory
Standard Memory 32 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1200 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2680v3
Processor Core Dodeca-core (12 Core)
Processor Speed 2.50 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Other Information
Product Family C240 M4
Cache 30 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
QuickPath Interconnect 9.60 GT/s
Hyper-Threading Yes
