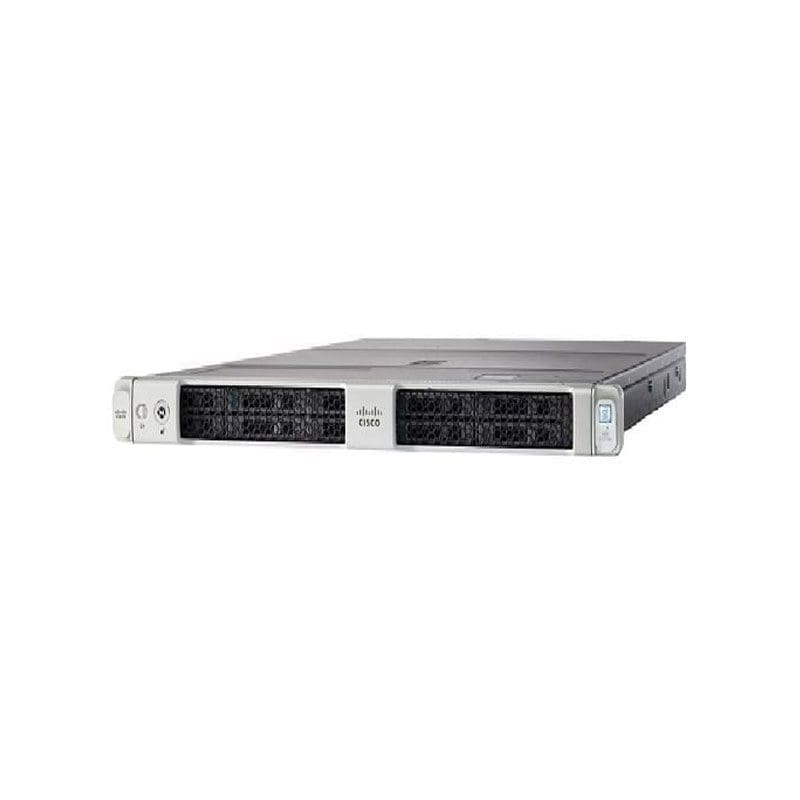

UCSC-C220-M5SN Cisco UCS C220 M5SN SFF – rack-mountable

UCSC-C220-M5SN Technical Specifications

Cisco UCS C220 M5SN SFF – rack-mountable

Bay Provided
Form Factor :2.5″ SFF
Free Qty :10
Total Qty :10
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Rack-mountable
Front Accessible Bays Qty :10 Bays
Hot-Swap Bays Qty :10
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :PCIe Express
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, half-height
Slot Comments :X16 mode / NCSI support
Type :PCIe 3.0 x24
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :CPU
Type :DIMM 288-pin
Type :mLOM
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C220 M5 SFF
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :DB-15
Location :1 rear
Qty :1
Type :VGA
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Location :2 rear
Qty :2
Type :USB 3.0
Type :LAN (10 Gigabit Ethernet)
Type :Management (NIC)
Miscellaneous
Color Category :Silver
Compliant Standards :ACPI 4.0, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300386, EN 55032 Class A, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB 4943-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :1U Rack Mount
Networking
Data Link Protocol :10 Gigabit Ethernet
Ethernet Controller(s) :Intel X550
Ethernet Ports :2 x 10 Gigabit Ethernet
Features :Wake on LAN (WoL)
Remote Management Controller :Intel Baseboard Management Controller (BMC)
Remote Management Protocol :CLI, IPMI 2.0, SNMP 2, SNMP 3
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :0
Max Supported Qty :2
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Type :Power supply – hot plug
