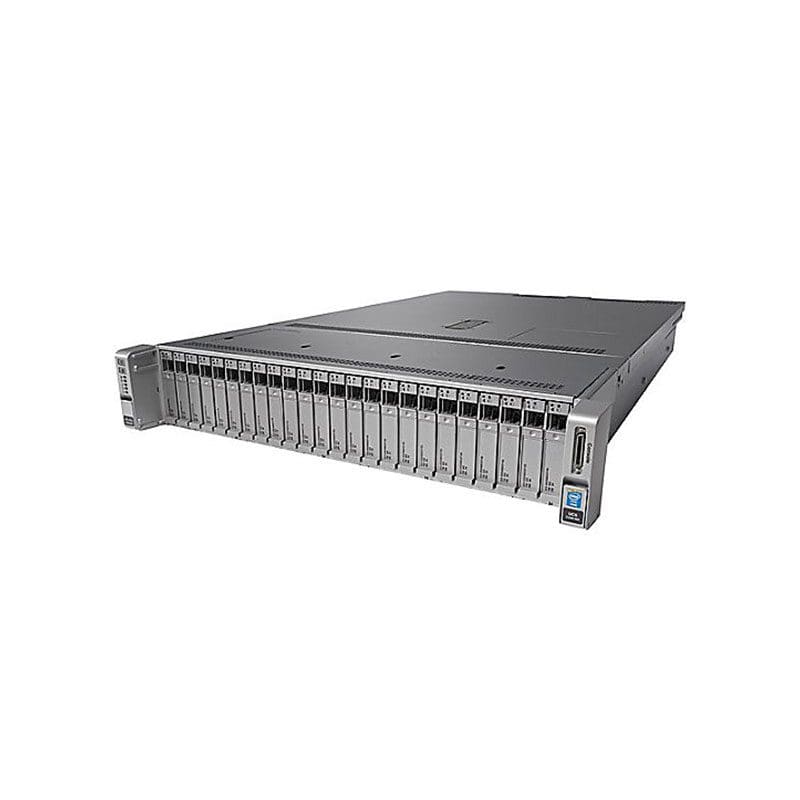

UCSC-C240-M4SX Cisco UCS C240 M4 High-Density Rack Server

UCSC-C240-M4SX Overview

The UCS C240 M4 SFF server is 2-socket, 2U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration. The enterprise-class UCS C240 M4 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor. In addition, the UCS C240 M4 SFF server provides 24 DIMM slots, up to 6 PCI Express (PCIe) 3.0 slots, up to 24 front-loading drives plus two (optional) internal SATA boot drives for a total of 26 internal drives. The C240 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance. The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.


Buy Now
Availability: In Stock

UCSC-C240-M4SX Technical Specifications

Cisco UCS C240 M4 High-Density Rack Server

Bay Provided
Form Factor :2.5″ SFF
Free Qty :24
Total Qty :24 Bays
Chassis Built-in Devices :Backplane
Card Reader
Supported Flash Memory Cards :SD Memory Card
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :SD card
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C240 M4 High-Density Rack Server (Small Form Factor Hard Disk Drive Model)
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Serial
Qty :2
Type :USB 3.0
Type :KVM
Type :Management
Type :Management (NIC)
Type :VGA
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1, UL 60950-1 Second Edition
Height (Rack Units) :2
Included Accessories :SAS expander
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :2 x Intel I350
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :0
Max Supported Qty :2
Power Redundancy :Optional
Type :Power supply – hot-plug
Type :None
Clock Speed :n/a
Installed Qty :0
Manufacturer :n/a
Max Supported Qty :2
Processor Number :n/a
Server Scalability :2-way
Type :No CPU
Upgradability :Upgradable
Data Integrity Check :ECC
Empty Slots :24
Features :Dual rank, Load-Reduced DIMM (LRDIMM), Memory Mirroring, Registered, Single rank
Form Factor :DIMM 288-pin
Installed Size :0 GB
Max Supported Size :768 GB
