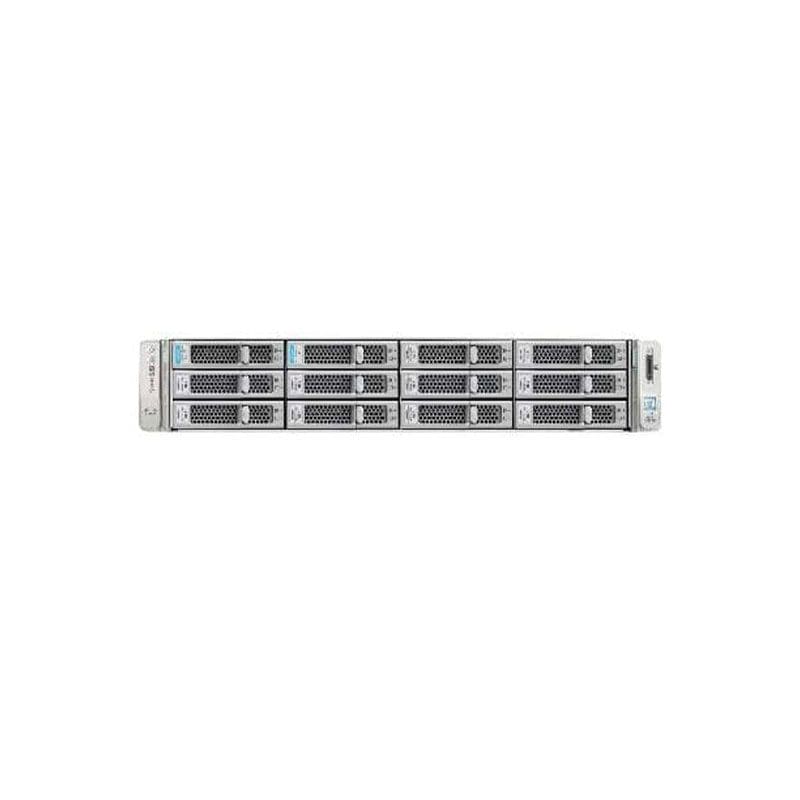

UCSC-C240-M5L-CH Cisco Systems Distribution C240 M5 12 LFF
UCSC-C240-M5L-CH Overview
The UCS C240 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
$2,855
UCSC-C240-M5L-CH Technical Specifications
Cisco Systems Distribution C240 M5 12 LFF
General Information
Product Name Distribution C240 M5 12 LFF + 2 Rear Dr without CPU
Manufacturer Part Number UCSC-C240-M5L-CH
Product Series C240 M5
Product Type Barebone System
Cisco UCS
Interfaces/Ports
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity 16 MB
I/O Expansions
Number of Total Expansion 15 Bays
Number of 3.5″ Bays 15
Memory
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Processor & Chipset
Number of Processors Supported 2
Processor Supported Xeon
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C620
