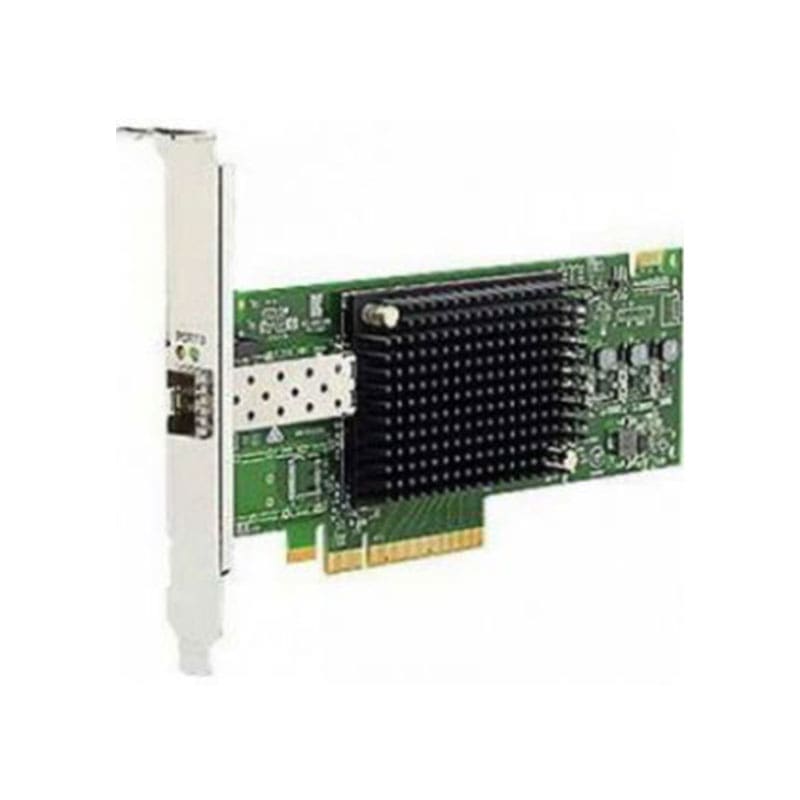

UCSC-PCIE-BS32GF Technical Specifications
Emulex LightPulse LPe32000 Network Adapter PCIe x8 32Gb Fibre Channel
Brand: Emulex
Product Line: Emulex LightPulse
Model: LPe32000
Manufacturer: Cisco Unified Computing
Network & Communication
Cable Type: Fiber optic
Connectivity Technology: Wired
Data Link Protocols: 32Gb Fibre Channel
Features: Full duplex mode
Form Factor: Plug-in card
Host Interface: PCI Express x8
Low Profile: Low profile
PCI Specification Revision: PCI 2.0, PCIe 3.0
Product Type: Network adapter
Connectivity
Port Quantity: 1
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Performance: Maximum data rate: 28.05 Gbps
Included Items
Included Accessories: Low-profile bracket, SFP+ LC transceiver
Dimensions & Weight
Width: 6.6 inch
Depth: 2.7 inch
