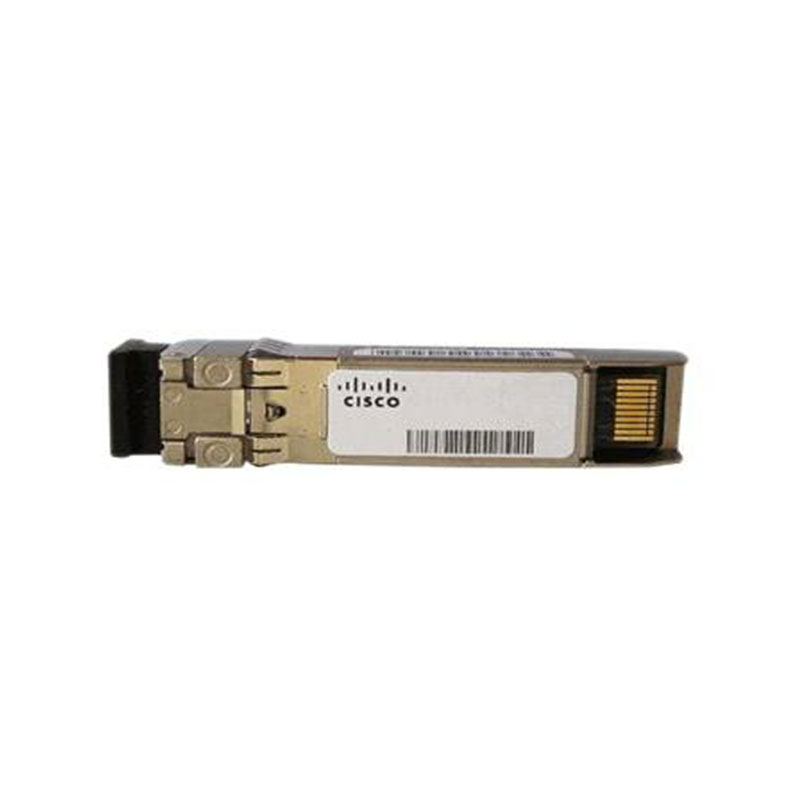

VIP-SFP+-10GE-LR Cisco 10Gbps 10GBase-LR Single-mode Fibre 10km 1310nm Transceiver Module
VIP-SFP+-10GE-LR Overview
The Cisco VIP-SFP+-10GE-LR is a high-performance optical transceiver module designed to deliver 10Gbps data rates over single-mode fiber (SMF). Built for 10GBase-LR Ethernet applications, it supports reliable long-distance transmission up to 10 kilometers. Operating at the 1310nm wavelength, it uses a DFB laser transmitter and a PIN photodiode receiver to ensure efficient optical performance with low latency and high stability.Equipped with a duplex LC connector, the module ensures secure and low-loss optical connectivity. Its hot-swappable SFP+ form factor allows quick installation or replacement without service interruption, making it an ideal choice for dynamic networking environments.
VIP-SFP+-10GE-LR Technical Specifications
Cisco 10Gbps 10GBase-LR Single-mode Fibre 10km 1310nm Duplex LC Connector SFP+ Transceiver Module
Manufacturer Part Number: VIP-SFP+-10GE-LR
Brand Name: Cisco
Product Type: SFP+ Transceiver Module
Data Rate: 10Gbps
Transceiver Type: 10GBase-LR (Long Reach)
Media Type Supported: Single-Mode Fiber (SMF)
Wavelength: 1310nm
Connector Type: LC Duplex
Maximum Reach: Up to 10km over SMF
Form Factor: SFP+
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: Cisco networking and data center equipment
Application: Enterprise, data center, and service provider networks
Standards Compliance: IEEE 802.3ae 10GBase-LR, SFP+ MSA
Backward Compatibility: Supports lower data rates (1Gbps where applicable)
Power Consumption: Low power, energy efficient
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Reliability: High-performance, continuous operation
Latency: Low for optimized data transmission
Installation: Plug-and-play module
