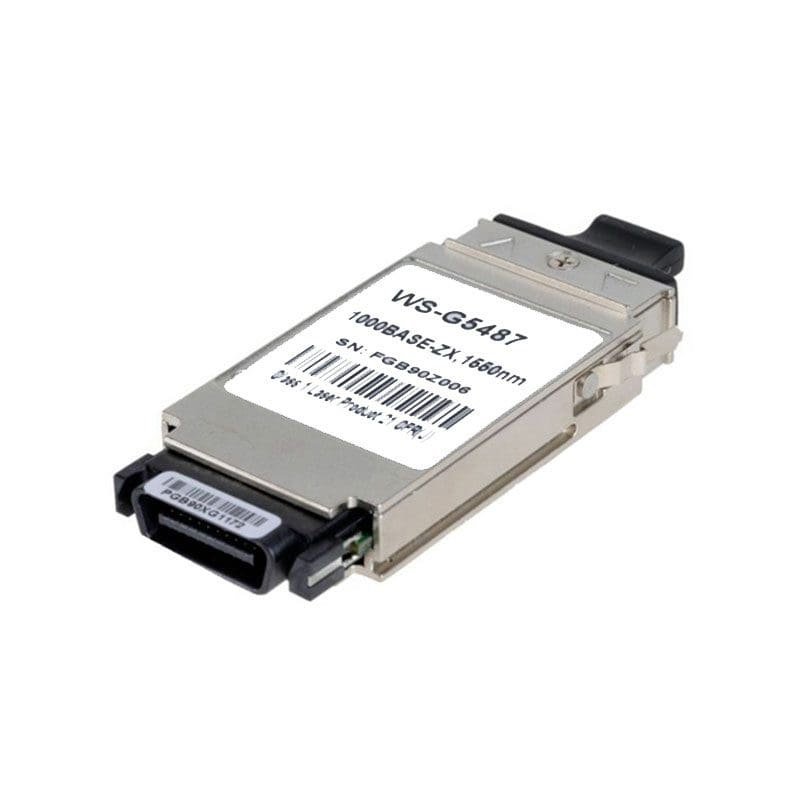

WS-G5487 Cisco 1000Base-ZX Extended Reach GBIC Transceiver
WS-G5487 Overview
The Cisco 1000BASE-ZX GBIC (WS-G5487) operates on ordinary single-mode fiber optic link spans up to 43.4 miles (70 km) long. Link spans of up to 62 miles (100 km) are possible using premium single-mode fiber or dispersion shifted single-mode fiber. The GBIC provides an optical link budget of 21 dB – the precise link span length will depend on multiple factors such as fiber quality, number of splices, and connectors.
$0
WS-G5487 Technical Specifications
Cisco 1000Base-ZX Extended Reach GBIC Single mode Transceiver Module
General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 1000Base-ZX GBIC
Product Type: GBIC
Cisco Transceiver
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x 1000Base-ZX LAN
Interfaces/Ports Details: 1 x SC 1000Base-ZX LAN
Media & Performance
Connectivity Media: 8 µm Single-mode Optical Fiber
Connectivity Media: 8.3/9/10 µm Single-mode Optical Fiber (SMF)
Distance Supported: 43.50 Mile 8.3/9/10 µm Optical Fiber
Distance Supported: 62.10 Mile 8 µm Optical Fiber
Data Transfer Rate: 1 Gbps Gigabit Ethernet
Environmental Conditions
Temperature: -40°F (-40°C) to 185°F (85°C) Storage
Temperature: 32°F (0°C) to 122°F (50°C) Operating
