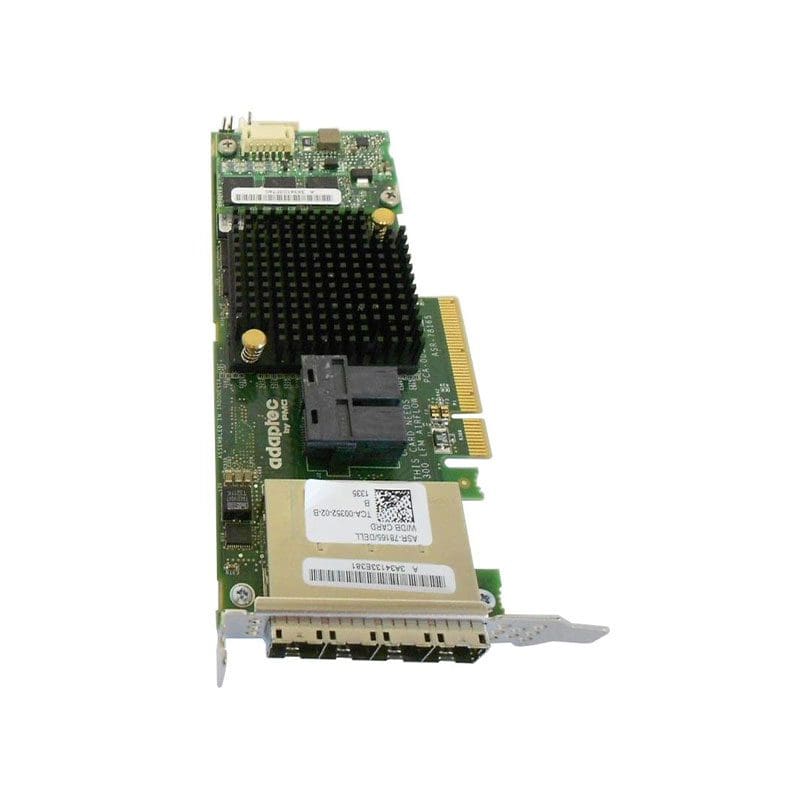

0KT1V Dell 24-Ports SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 MD2

0KT1V Technical Specifications

Dell 24-Ports SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/1E/5/6/10/50/60 Controller Card

Part Number : 0kt1v
Manufacturer : Dell
Specifications :
Raid Levels : 0, 1, 1e, 5, 6, 10, 50, 60
Form Factor : Md2 – Low Profile, 2.535”h X 6.6”l (64mm X 167mm)
Ports : 8 Internal, 16 External
Connectors : 2 X Sff-8643, 4 X Sff-8644
Bus Interface : 8-lane Pcie Gen3
Processor : Pmc Pm8015
Cache : 1024mb
Benefits: Ideal For Space-limited Entry-level Server To High-end Server Platforms And High-performance Workstations Without Compromising Robust 6gb/s Performance And Proven Adaptec Reliability.
Environmental Compliance : Rohs
Mtbf : 700,000 Hours At 40°c (ongoing Testing)
Key Differentiators :
24 Native Sas Ports
Low Profile/md2 Form Factor
Third Generation Zmcp (afm-700) Optional
Complete Portfolio Of Sas Hd Cables Available
