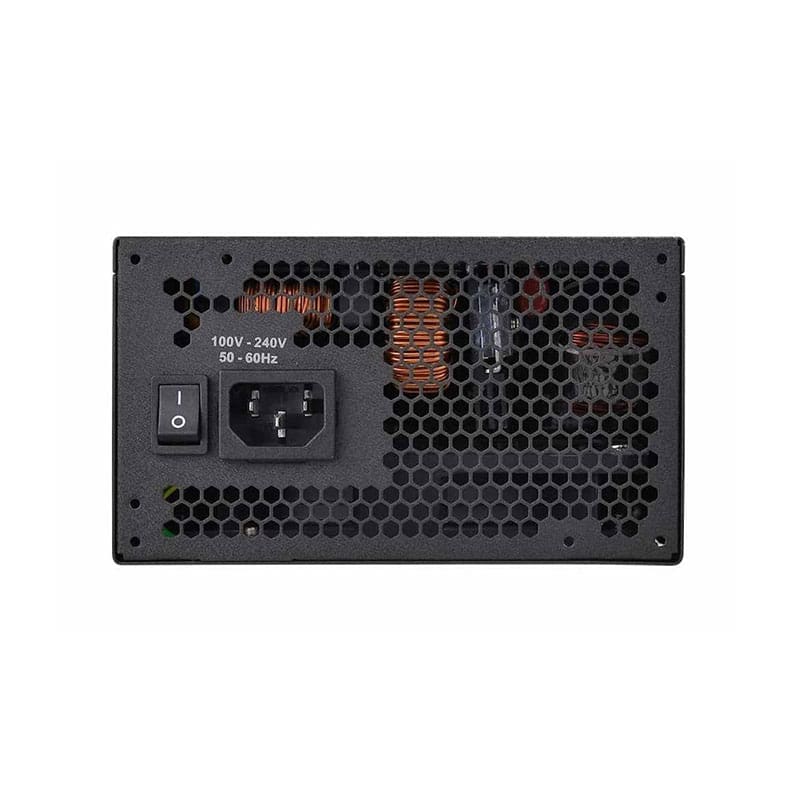

120-GP-1000-X1 EVGA SuperNOVA 1000 G1+ Power Supply

120-GP-1000-X1 Technical Specifications

EVGA SuperNOVA 1000 G1+ 1000W 80 Plus Gold Modular Power Supply

Manufacturer: EVGA
Manufacturer Part Number: 120-GP-1000-X1
Product Type: Power Supply
ATI CrossFire Supported: Yes
NVIDIA SLI Supported: Yes
Number of +12V Rails: 1
Product Family: SuperNOVA
Modular: Yes
Specification Compliance: ATX12V/EPS12V
Form Factor: Internal
Product Model: 1000 G1+
Efficiency: 90%
Input Voltage:
120 V AC
230 V AC
Output Power: 1000 W
Output Voltage:
3.3 V DC
5 V DC
12 V DC
5 V
Number of Fans: 1
Environmentally Friendly: Yes
Output Voltage Detail:
3.3 V DC @ 24 A
5 V DC @ 24 A
12 V DC @ 83.3 A
12 V DC @ 500 mA
5 V @ 3 A
Height: 3.3″
Width: 5.9″
Depth: 7.1″
Output Current:
24 A
83.30 A
500 mA
3 A
Product Line: SuperNOVA
