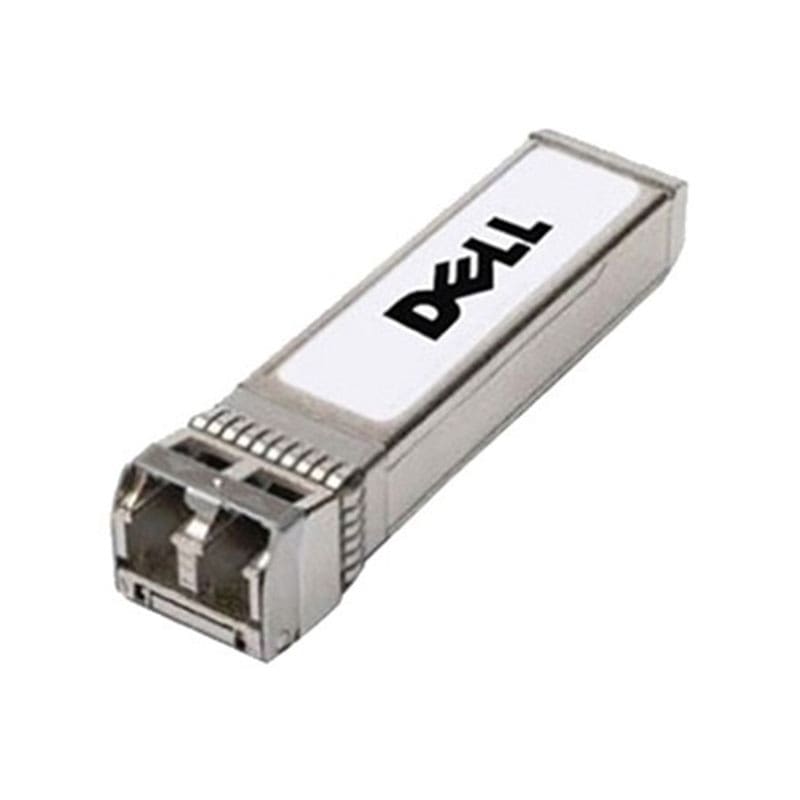

407-BBXU Dell 25GBASE-SR SFP+ 850nm 100m DOM Transceiver Module

407-BBXU Technical Specifications

Dell 25GBASE-SR SFP+ 850nm 100m DOM Transceiver Module

Part: 407-BBXU
Brand: DELL
Condition: NEW
Hot-pluggable SFP28 transceiver module
25GBASE-SR 25G Ethernet
25.78 Gbps bi-directional data links
Up to 100m over OM4 Multimode Fiber (MMF)
Up to 70m over OM3 Multimode Fiber (MMF)
850nm VCSEL laser and PIN photo-detector
Power dissipation < 1W
Metal enclosure, for lower EMI
Single 3.3V power supply
Duplex LC connector
2-wire interface with integrated Digital Diagnostic monitoring
Commercial operating temperature range: 0°C to 70°C
