653200-B21 Technical Specifications
HP Proliant Dl380p G8 CTO Chassis With No CPU No RAM Matrox G200 Smart Array P420i 2u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 653200-B21
Product Name : Proliant Dl380p G8 Sff Cto Rack Server
PROCESSOR & CHIPSET :

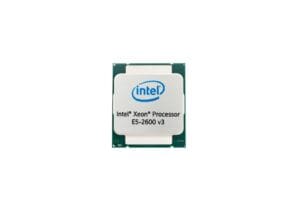

Processor Type : Intel E5-2600 Processor Family
Installed Processor : No CPU
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Sockets Supported : FCLGA2011
MEMORY :
Installed Size : None
Maximum Size : 384 GB
Technology : DDR3 SDRAM
Form Factor : DIMM 240-PIN
Features : Quad Channel Memory Architecture, Hp Smart Memory
STORAGE & STORAGE CONTROLLER :
Hard Drive : None, Drive Cage – 8sff
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P420iRaid Level : Raid 0, Raid 1, Raid 10
CARD READER :
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
DIMENSIONS & WEIGHT :
Width : 17.6 In
Depth : 27.5 In
Height : 3.4 In
Weight : 41 Lbs
