7Y37A01087 Technical Specifications

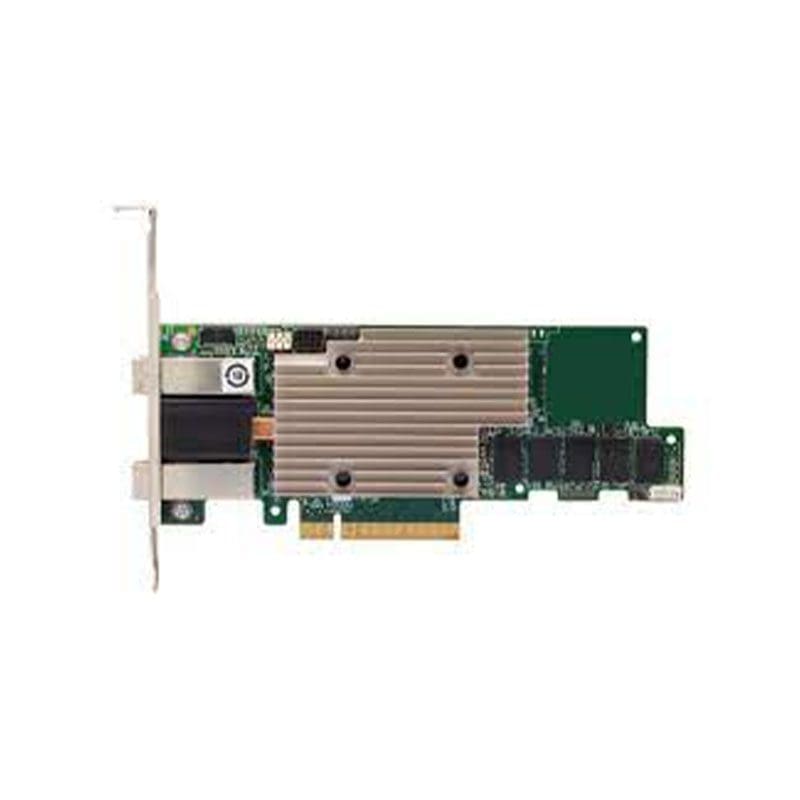

Lenovo ThinkSystem RAID 930-8e 8-Ports 4GB Flash SAS 12Gbps PCI Express 3.0 x8 RAID Controller
Manufacturer Part Number 7Y37A01087
Brand Name Lenovo
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
10
5
50
6
60
JBOD
Data Backup Type Flash Backed Cache
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (External) 8
SAS Connector Details 2 SFF-8644
Physical Characteristics
Form Factor Plug-in Card
Miscellaneous
Platform Supported Linux
PC
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
China RoHS
