J9776-61101 HP Managed Switch 24 Port Gigabit + 4PT GE SFP
J9776-61101 Overview

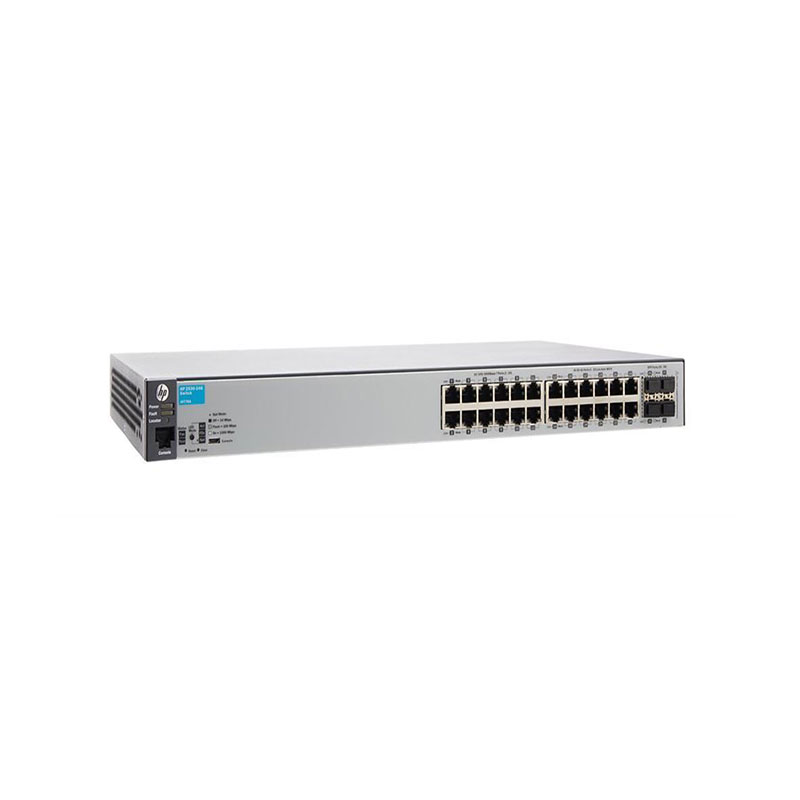

The HP J9776-61101 is a fully managed Layer 2 Gigabit Ethernet switch featuring 24 RJ-45 Gigabit ports and 4 Gigabit SFP uplink slots for fiber or copper connectivity. It is designed for enterprise edge, branch offices, and small-to-medium business networks requiring high-performance, secure, and reliable connectivity.The switch supports advanced management through web GUI, CLI, and SNMP, allowing easy configuration, monitoring, and troubleshooting. It provides VLANs, link aggregation, QoS, and robust security features like ACLs and port security to ensure stable and secure network operations.
J9776-61101 Technical Specifications
HP Managed Switch 24 Port Gigabit + 4PT GE SFP
Manufacturer Part Number: J9776-61101
Brand Name: HP
Product Line: ProCurve 2530 Series
Product Type: Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x Gigabit SFP
Layer Support: Layer 2
Switching Capacity: 52 Gbps
Forwarding Rate: 38.7 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: Not Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: 4 Groups Supported
