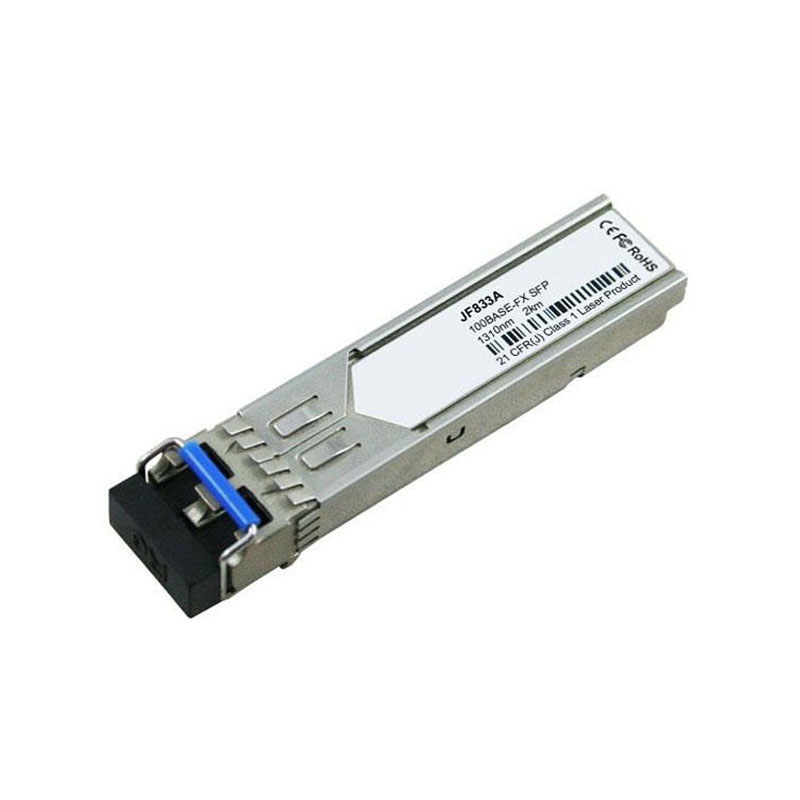

JF833A HP 100Mbps 100Base-FX Multi-mode Fiber 2km 1310nm Duplex LC Transceiver Module
JF833A Overview
The HP JF833A SFP Transceiver is a 100Mbps Fast Ethernet optical module designed for 100Base-FX applications over multi-mode fiber (MMF). Supporting a transmission distance of up to 2 kilometers, it provides reliable connectivity for enterprise networks, branch offices, and campus environments requiring stable medium-range fiber links.Operating at a 1310nm wavelength, the transceiver uses a duplex LC connector for secure and efficient fiber connections. This ensures low insertion loss and consistent performance across supported link distances.The module is fully compliant with IEEE 802.3u 100Base-FX standards and the SFP Multi-Source Agreement (MSA), ensuring interoperability across HP networking equipment as well as other MSA-compliant platforms.
JF833A Technical Specifications
HP 100Mbps 100Base-FX Multi-mode Fiber 2km 1310nm Duplex LC Connector SFP Transceiver Module
Manufacturer Part Number: JF833A
Brand Name: HP
Product Type: SFP Transceiver
Data Rate: 100Mbps
Transceiver Type: 100Base-FX
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 1310nm
Connector Type: Duplex LC
Maximum Reach: Up to 2km over MMF
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP networking switches and devices with SFP slots
Application: Fast Ethernet fiber connectivity
Standards Compliance: IEEE 802.3u, SFP MSA
Backward Compatibility: Supports legacy Fast Ethernet standards
Operating Temperature: 0°C to 70°C
Low Power Consumption: Energy-efficient optical module
Installation: Plug-and-play module
Use Case: Campus networks, enterprise, and industrial Ethernet
Signal Type: Optical serial transmission
