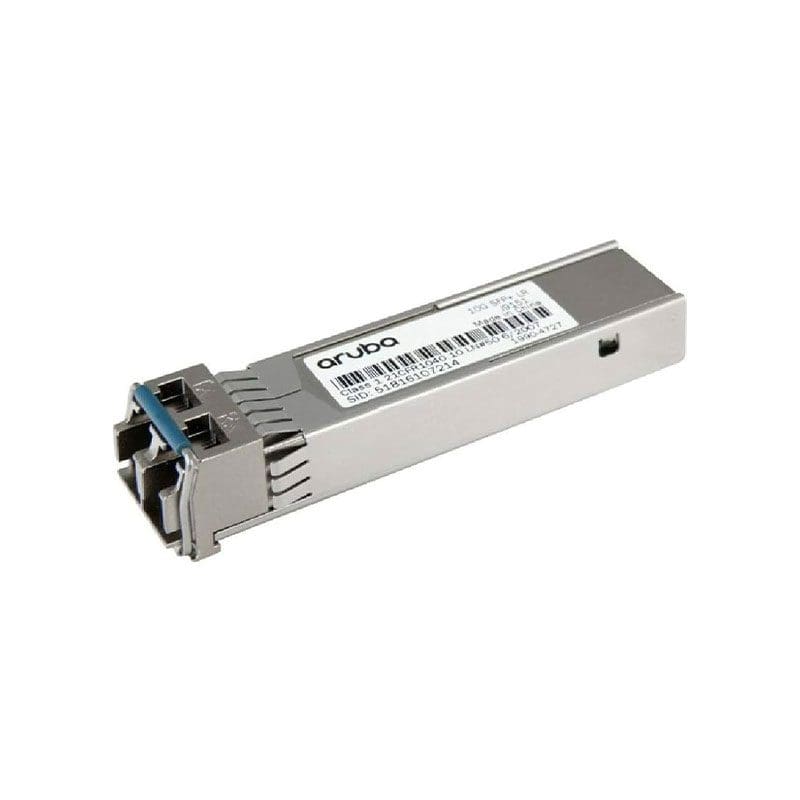

JL783A HPE Aruba 10G I-TMP SFP+ LC LR 10KM SMF XCVR

JL783A Technical Specifications

HPE Aruba 10G I-TMP SFP+ LC LR 10KM SMF XCVR

MANUFACTURE: HPE
BRAND: HPE
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm.
Minimum Optical Budge: 6 dB
Maximum Distance: 10km
Supported Data Rate: 1.25-10.31 Gbps
Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
DDM/DOM: Support
Temperature Range: Industrial -40° to 85°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Rx Wavelength Bandwidth:    100 nm (1260-1360 nm)
Minimum Transmitting Power: -8 dB
Maximum Transmitting Power: -0.5 dB
Receiver Sensitivity: -14 dBm
Receiver Overload: 0.5 dBm
Dispersion: 70-100 ps/nm
Transmitter Type: DFB Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
