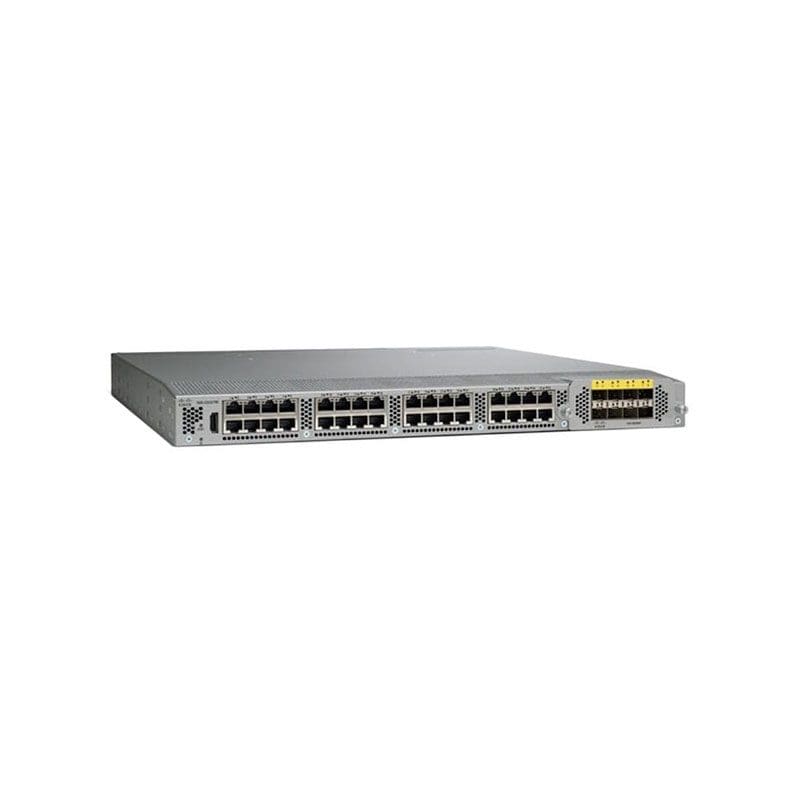

Refurbished N2K-C2232T8F-E Technical Specifications
Cisco Nexus 2232TM-E 10GE Fabric Extender 32 ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Nexus
Model :2232TM-E 10GE Fabric Extender
Bundled with :8 x Cisco Nexus 2000 Series Fabric Extender Transceiver (FET-10G)
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Rack-mountable
Connectivity Technology :Wired
Cabling Type :Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet
Network / Transport Protocol :ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Flow control, Full duplex capability, Hot swap module replacement, IGMP snooping, Jumbo Frames support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Uplink, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Expansion Slots
Expansion Slots :8 (total) / 0 (free) x SFP+
Interface Provided
Interfaces :32 x 10Gb Ethernet – RJ-45
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :17.7 inch
Height :1.7 inch
Weight :18.52 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
