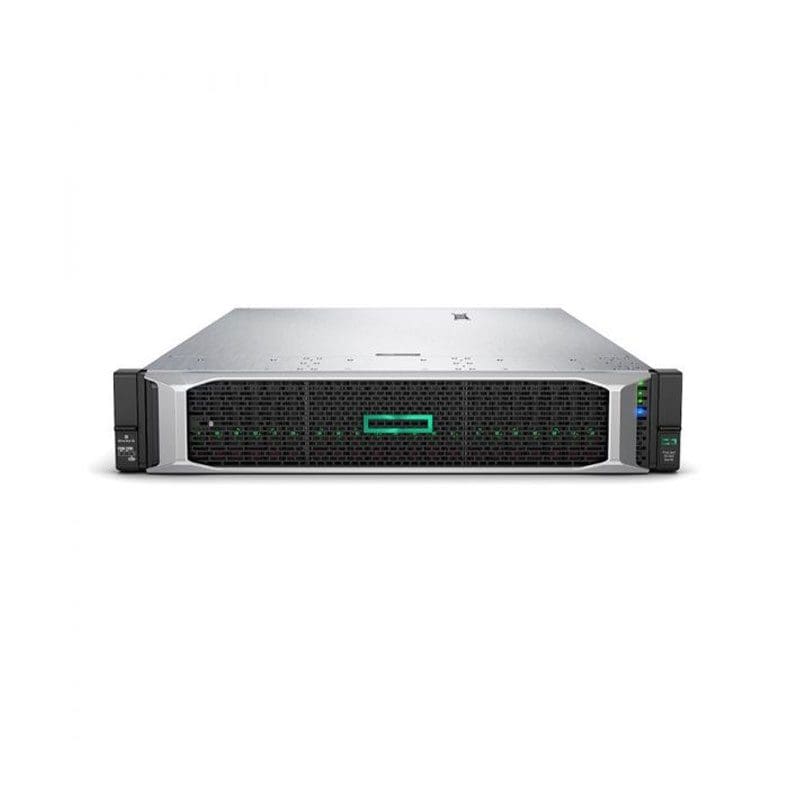

P02874-B21 HPE Proliant DL560 Gen10 Server

SKU: P02874-B21 Categories: ,

P02874-B21 Overview

The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest 2nd generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

P02874-B21 Technical Specifications

HPE Proliant DL560 Gen10 Server

General Information
Product Name HPE Proliant DL560 Gen10 4xXeon-G 6254 18-Core 256GB 8SFF P408i-p SR 2x1600W 3-Year
Manufacturer Part Number P02874-B21
Product Line ProLiant
Product Series DL560 G10
Product Type Server
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Standard Memory 256 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 48
Number of Occupied Memory Slots 8
Network & Communication
Ethernet Technology Gigabit Ethernet
10 Gigabit Ethernet

Power Description
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 4
Number of Processors Installed 4
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6254
Processor Core Octadeca-core (18 Core)
Processor Speed 3.10 GHz
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4″
Width 17.5″
Depth 29.7″
