PRIME H470-PLUS/CSM ASUS LGA 1200 Intel H470 SATA

PRIME H470-PLUS/CSM Overview

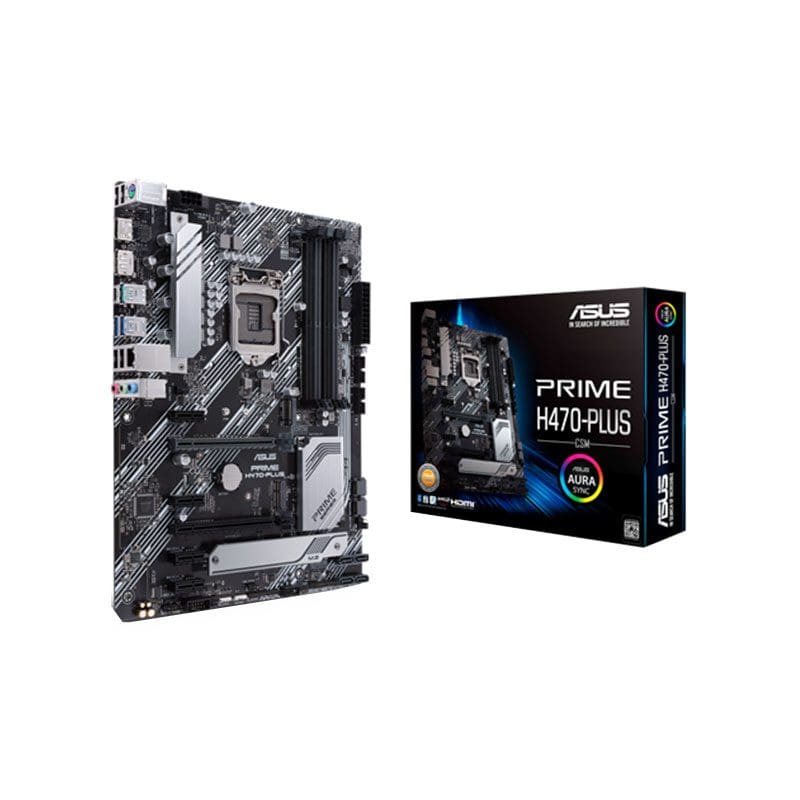

PRIME H470-PLUS/CSM ASUS LGA 1200 Intel H470 SATA 6Gb/s ATX Intel Motherboard

Availability: In Stock
SKU:PRIME H470-PLUS/CSM
Brand:

PRIME H470-PLUS/CSM Technical Specifications

ASUS LGA 1200 Intel H470 SATA 6Gb/s ATX Intel Motherboard

Model
Brand
ASUS
Model
PRIME H470-PLUS/CSM

Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors*
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset
Intel H470

Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic:
1 x DisplayPort 1.4**
1 x HDMITM 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory*
* For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
Intel 10th Gen Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
Intel H470 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
PCI Express x1
4 x PCIe 3.0 x1 slots
Other Slots
M.2 slot (Key E) (Wi-Fi module is sold separately)

Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x2 mode)*
* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10

Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports
Back I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)*
1 x DisplayPort
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
* USB_E1, USB_E2, USB_E3 & USB_E4 share bandwith.
