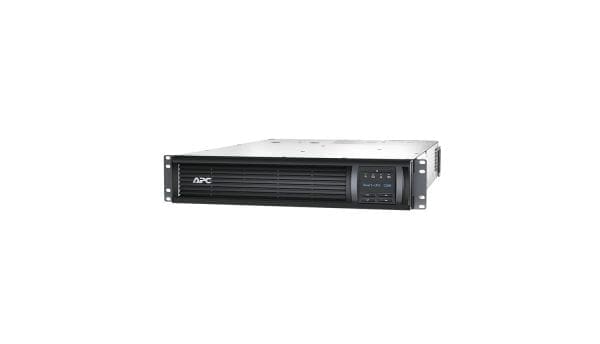

SMT2200RM2UNC APC Smart-UPS 2200VA LCD RM 2U UPS 1980 W

SMT2200RM2UNC Technical Specifications

APC Smart-UPS 2200VA LCD RM 2U UPS 1980 W 2200 VA

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :2200VA LCD RM 2U
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Fast Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included :Power cable – external – 8 ft
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-20P
Input Connector Qty :1
Output Connector Type :2 x power NEMA 5-20, 6 x power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Switchover Time :4 millisecond
Surge Energy Rating :530 joules
Efficiency :97.9% at 50% Load, 97.8% at 75% Load, 97.3% at 25% Load, 97.6% at 100% Load
Power Device Features :Audible alarm, LCD display, Automatic Voltage Regulation (AVR), Cold-start function, Hot-swappable batteries, Energy meter, LED indicators
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20, 6 x power NEMA 5-15
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :16 min at half load, 5 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :RoHS, CSA, FCC Part 15 A, REACH, UL 1778
Features :Audible alarm, Hot-swappable battery
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :18.9 inch
Depth :26.9 inch
Height :3.4 inch
Weight :93.28 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :38.6 inch
Shipping Height :10 inch
Shipping Weight :109.63 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
