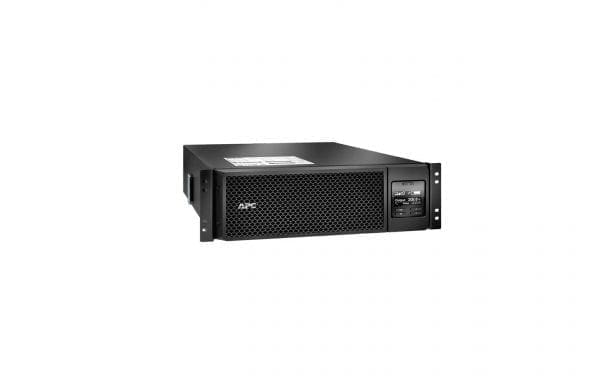

SRT5KRMXLT APC Smart-UPS SRT 5000VA RM 208V

SRT5KRMXLT Technical Specifications

APC Smart-UPS SRT 5000VA RM 208V

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA RM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Remote Management Protocol :HTTP, SNMP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :Power cable 10 ft, USB cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4250 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-30P
Input Connector Qty :1
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-20R, 2 x power NEMA L6-30R
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :13 min at half load, 4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails
Rack Mounting Kit :Included
Height (Rack Units) :3
Compliant Standards :RoHS, UL 1778, IP20, FCC Part 15 A, CSA C22.2 No. 107.3, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :5.1 inch
Weight :122.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :13 inch
Shipping Weight :150.02 lbs
Service & Support
Type :3-year warranty
Service & Support Details
Service & Support :Limited warranty – 3 years, Limited warranty – batteries – 2 years
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
