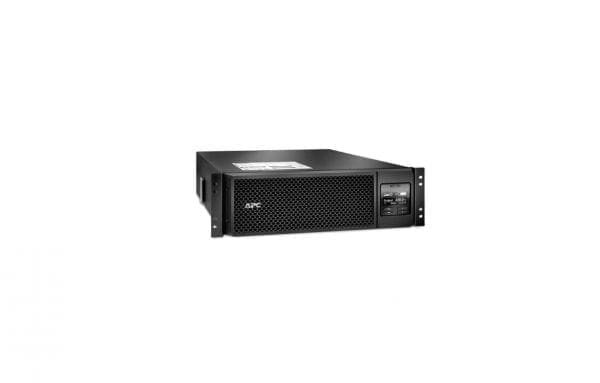

SRT5KRMXLW-HW APC Smart-UPS SRT 5000VA RM 208/230V HW
SRT5KRMXLW-HW Overview
Text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BaseT connection.Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
$6,459
SRT5KRMXLW-HW Technical Specifications
APC Smart-UPS SRT 5000VA RM 208/230V HW
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA RM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 208/230 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4500 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208/230 volt
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :4 min at full load, 11.8 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails, Tower stand
Rack Mounting Kit :Included
Height (Rack Units) :3
Compliant Standards :IP20, C-Tick, RoHS, EAC, REACH, EN 50091-1, VDE, IEC 60950, EN 62040-2, EN 50091-2
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :5.1 inch
Weight :120.37 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :13 inch
Shipping Weight :147.71 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
