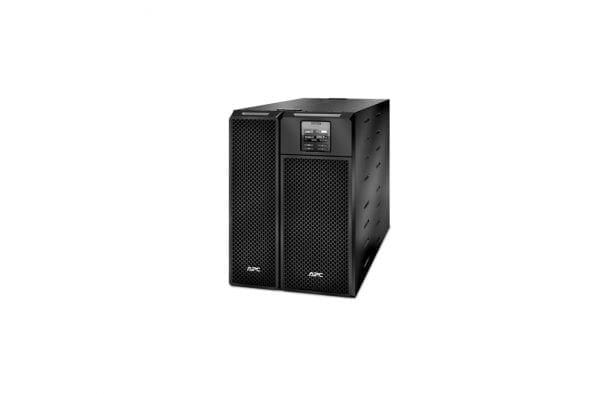

SRT6KXLT-5KTF APC Smart-UPS SRT 6000VA with Transformer
SRT6KXLT-5KTF Overview
Smart-UPS On-Line provides high-density, double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting high loads in a rack/tower convertible chassis. These models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
$7,917
SRT6KXLT-5KTF Technical Specifications
APC Smart-UPS SRT 6000VA with 208/240V to 120V Step-Down Transformer
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :6000VA
Bundled with :208/240V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (Ethernet) – RJ-45
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120/208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Output Connector Type :Power NEMA 5-20R, Power NEMA L6-20, Power NEMA L14-30, Power NEMA L6-30, Hardwire 3-wire (2PH + G)
Output Connector Qty :18
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :94% at 75% Load, 92.7% at 25% Load, 94.1% at 50% Load, 93.7% at 100% Load
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA L6-20, 1 x hardwire 3-wire (2PH + G), 3 x power NEMA L6-30, 1 x power NEMA L14-30, 8 x power NEMA 5-20R
Battery
Run Time (Up To) :2.3 minute (time unit)
Load Type :At full load
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :8.3 min at half load, 2.3 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :NOM, CSA C22.2 No. 107.3, FCC Part 15 A, IP20, UL 1778, RoHS, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :12 inch
Depth :28.3 inch
Height :17 inch
Weight :259.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :38.6 inch
Shipping Height :28.3 inch
Shipping Weight :281.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
