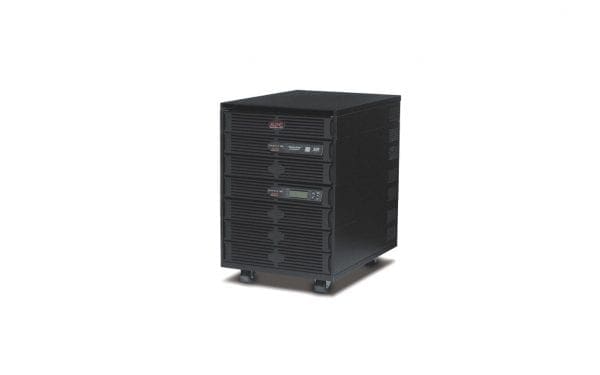

SYH6K6RMT-P1 APC Symmetra RM 6kVA Scalable to 6kVA N+1

SYH6K6RMT-P1 Technical Specifications

APC Symmetra RM 6kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer

Manufacturer :APC
Brand :APC
Product Line :APC Symmetra RM
Model :6 kVA scalable to 6kVA N+1
Country Kits :North America
Packaged Quantity :1
General
Subcategory :UPS
Product Type :Power array
Networking
Remote Management Interface :Ethernet
Remote Management Protocol :HTTP, Telnet, SNMP
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable 6 ft
Software
Type :APC PowerChute Symmetra Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 120/208 volt
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 155 – 276 V
Frequency Required :60 hertz
Input Connector Type :Hardwire
Input Connector Qty :1
Output Connector Type :Power NEMA L6-20, Power NEMA 5-20
Output Connector Qty :14
Surge Suppression :Yes
Power Output Connectors Details
Power Output Connectors Details :12 x power NEMA 5-20, 2 x power NEMA L6-20
Battery
Run Time (Up To) :12.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Supported Battery
Technology :Lead acid
Run Time Details
Run Time (Up To) :12.3 min at full load
UPS
Batteries Qty :3
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :10
Compliant Standards :FCC Class A certified, UL 1778, CSA
Features :LCD display, Audible alarm
Dimensions & Weight
Width :19 inch
Depth :28.7 inch
Height :17.5 inch
Weight :389.77 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :60 dBA
