UCS-SP-B200M5-A2T Cisco Systems SP B200 M5 with 2X5118 6X32GB
UCS-SP-B200M5-A2T Overview

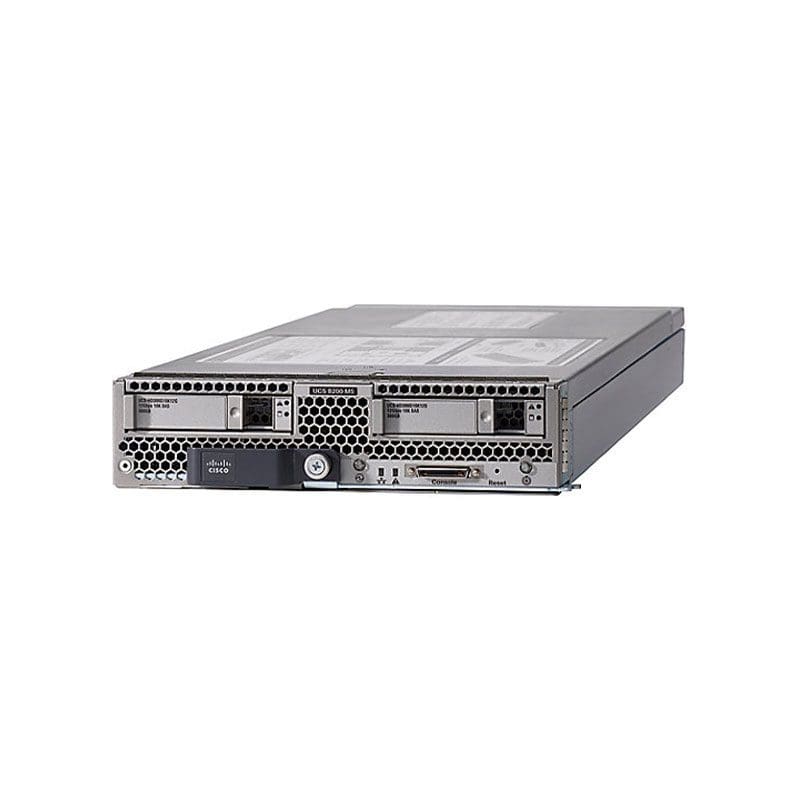

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
$10,399
Buy NowUCS-SP-B200M5-A2T Technical Specifications
Cisco Systems SP B200 M5 with 2X5118 6X32GB
General Information
Product Name SP B200 M5 with 2X5118 6X32GB Memory VIC1340
Manufacturer Part Number UCS-SP-B200M5-A2T
Product Series B200 M5
Product Type Server
Cisco UCS
Controllers
Controller Type Serial SATA
12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion Bays 2
Number of Internal 2.5″ Bays 2
Hot Swappable Bays Yes
Memory
Standard Memory 192 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 6
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Storage
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
