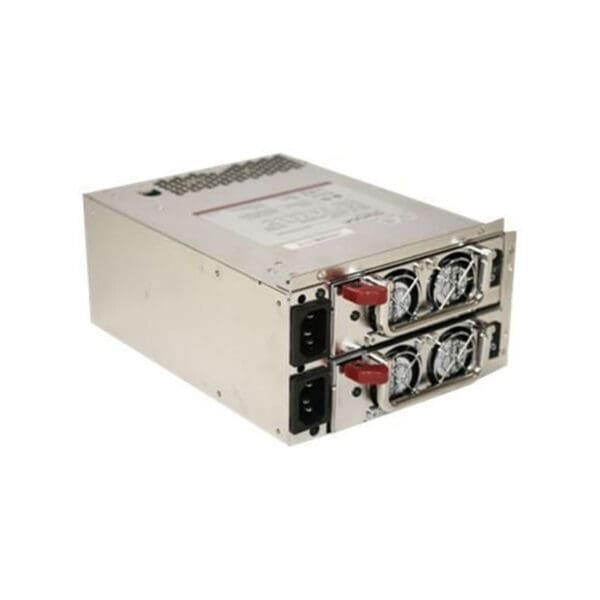

IS-400R8P iStarUSA 20+4Pin 2 x 400 W PS2 Mini Server Power Supply

IS-400R8P Technical Specifications

iStarUSA 20+4Pin 2 x 400 W Redundant PS2 Mini Server Power Supply

Product Type: Redundant Power Supply
Form Factor: Plug-in Module
Product Model: IS-400R8P
Efficiency: 74%
Input Voltage: 110 V AC , 220 V AC
Output Power: 400 W
Output Voltage: 3.3 V DC , 5 V DC
Number of Fans: 1
Environmentally Friendly: Yes
Power Factor Correction (PFC): Active
Output Voltage Detail: 3.3 V DC @ 24 A , 5 V DC @ 24 A
Height: 3.3″
Width: 5.9″
Depth: 7.8″
Output Current: 24 A , 30 A
MTBF: 100000 Hour
Hot Swappable Power Supply: Yes
Input Voltage Range: 90 V AC – 132 V AC , 180 V AC – 264 V AC
Input Current: 8 A @ 110V , 4 A @ 220V
