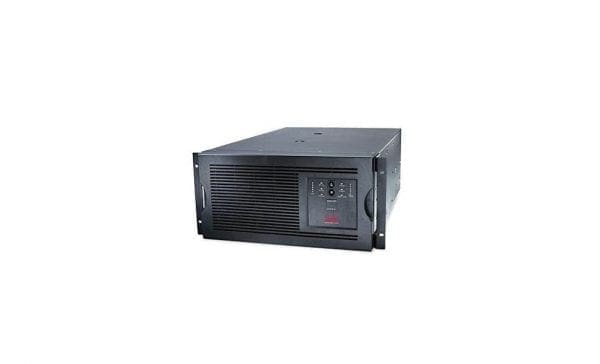

SUA5000RMT5U APC Smart-UPS 5000VA 208V Rackmount/Tower
SUA5000RMT5U Overview
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
$4,996
SUA5000RMT5U Technical Specifications
APC Smart-UPS 5000VA 208V Rackmount/Tower
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet 10/100
Remote Management Protocol :HTTPS, WAP, HTTP, Telnet, SNMP
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :4 kilograms per millimetere
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 141 – 255 V
Input Voltage Range (Adjustable) :AC 131 – 268 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L6-30
Input Connector Qty :1
Output Connector Type :Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, LED indicators, Noise filtering
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-30, 2 x power NEMA L6-20
Battery
Run Time (Up To) :9.4 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :26.7 min at half load, 9.4 min at full load
UPS
Batteries Qty :2
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :5
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Part 15 A, CSA, UL 1778, RoHS, RoHS Exemption 7b, UL 1449
Dimensions & Weight
Width :19 inch
Depth :26 inch
Height :8.7 inch
Weight :215.39 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :30 inch
Shipping Height :25 inch
Shipping Weight :235.89 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :53 dBA
