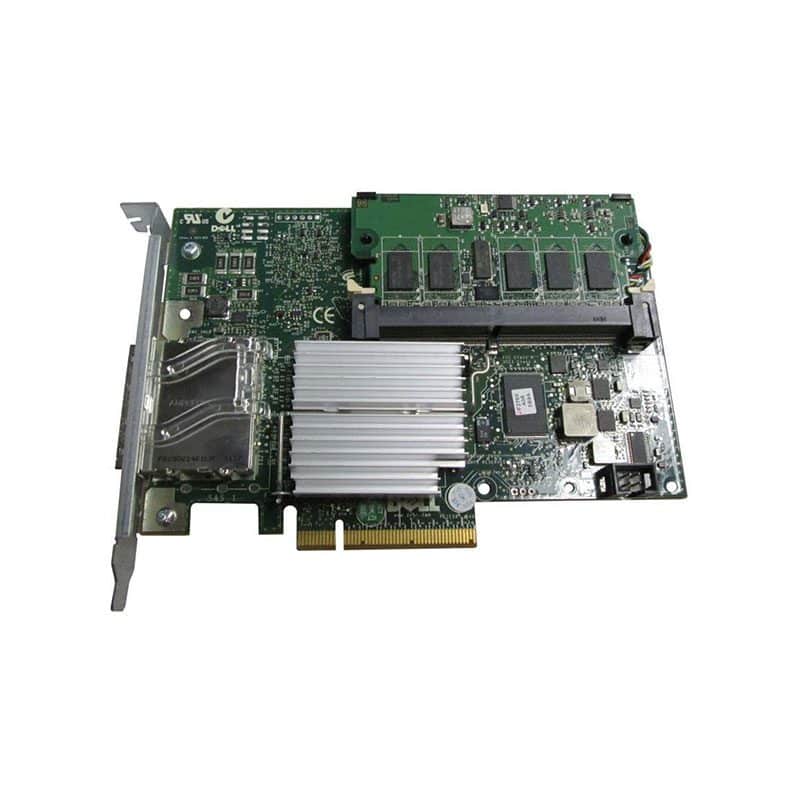

NH118 DELL Perc H800 6gb/s Pci-express 2.0 Sas Raid Controller

NH118 Technical Specifications

DELL Perc H800 6gb/s Pci-express 2.0 Sas Raid Controller With 512mb Cache

Part Number : Nh118
Manufacturer : Dell
Technical Information:
Product Type : Raid Controller
Interface Support : 6gb/s Sas
Bus Support : Pcie 2.0
Ports/ Channels : 8 (2 X4)
Sas Connections : 2×4 External
Cache Memory : 512mb
Raid Levels : 0, 1, 5, 6, 10, 50, 60
Hdd Support : Sas Only
Ssd Support : Sas Only
Transfer Rate: 6gbps
Max Drive Support : 192
Raid Support : Hardware Raid
