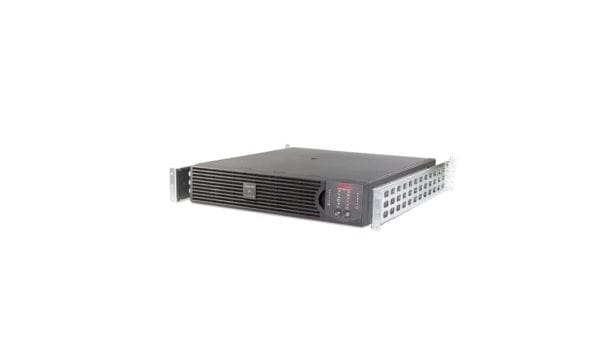

SURTD3000XLIM APC Smart-UPS RT 3000VA 230V – Marine
SURTD3000XLIM Overview
The APC Smart-UPS RT is a high-performance, uninterruptible power supply (UPS) that provides protection for electronic equipment from utility power blackouts, brownouts, sags and surges. The UPS filters small utility line fluctuations and isolates electronic equipment from large disturbances by internally disconnecting from utility line power. The UPS provides continuous power from the internal battery until utility power returns to safe levels or the battery is fully discharged.
$3,458
Buy Now
SURTD3000XLIM Technical Specifications
APC Smart-UPS RT 3000VA 230V – Marine
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS RT
Model :3000
Edition :Marine
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Power cable 8 ft, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 220/230/240 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2.1 kilograms per millimetere
Power Capacity (VA) :3000 volt ampere per kilogram
Voltage Required :AC 220/230/240 volt
Input Voltage Range :AC 180 – 270 V
Input Voltage Range (Adjustable) :AC 100 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :LED indicators, Internal bypass
Power Output Connectors Details
Power Output Connectors Details :8 x power IEC 60320 C13, 2 x power IEC 60320 C19
Battery
Run Time (Up To) :14.1 minute (time unit)
Load Type :At full load
Recharge Time :2.5 Hours
Run Time Details
Run Time (Up To) :14.1 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :3
Compliant Standards :EN 50091-1, EN 50091-2, REACH, EN 61000-3-2, EN 60950, RoHS Exemption 7b, UL 1449, EN55022 Class A
Dimensions & Weight
Width :5.1 inch
Depth :26 inch
Height :17 inch
Weight :120.37 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.7 inch
Shipping Depth :38.6 inch
Shipping Height :13.7 inch
Shipping Weight :140.21 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
