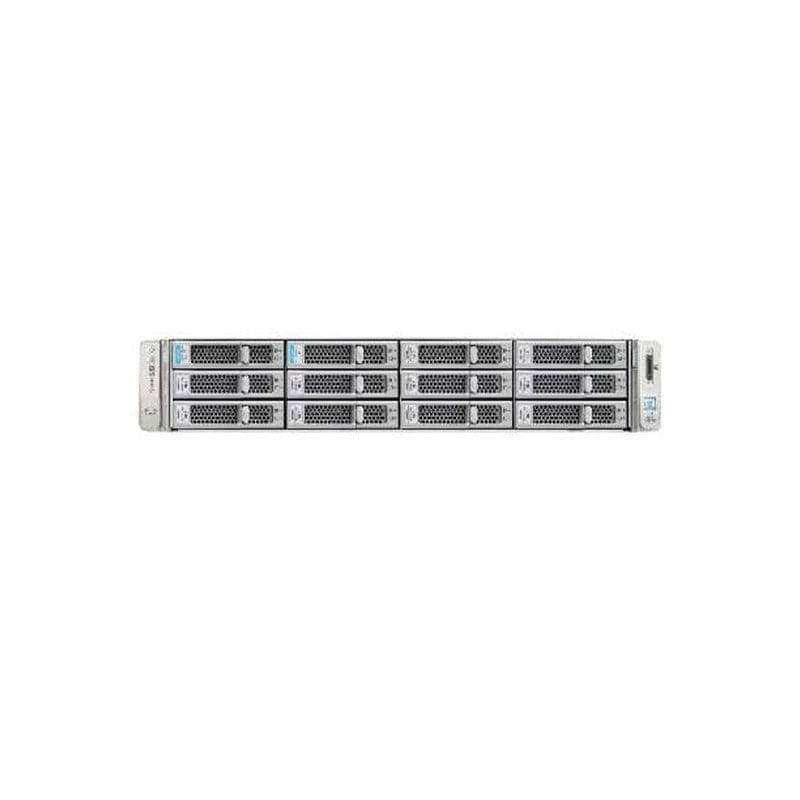

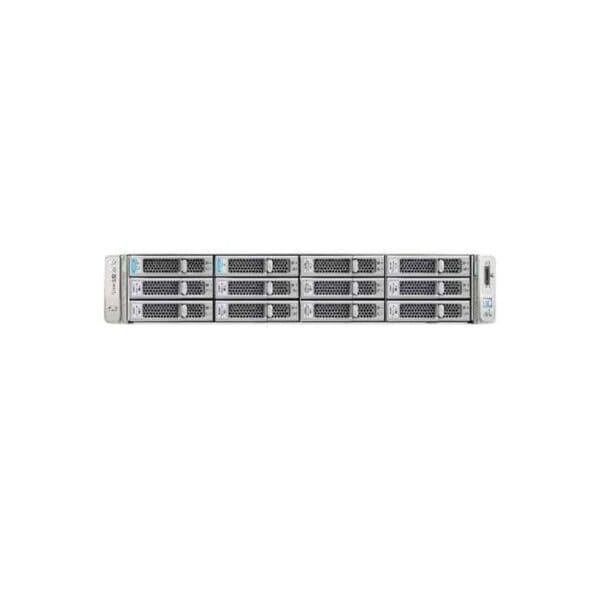

UCS-SPC240M5L-S2 Cisco Systems SP C240 M5L with 2X4114 6X16GB
UCS-SPC240M5L-S2 Overview
The UCS C240 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
$8,129
Buy NowUCS-SPC240M5L-S2 Technical Specifications
Cisco Systems SP C240 M5L with 2X4114 6X16GB
General Information
Product Name SP C240 M5L with 2X4114 6X16GB Memory VIC1387
Manufacturer Part Number UCS-SPC240M5L-S2
Product Series C240 M5
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 12 Bays
Number of 3.5″ Bays 12
Hot Swappable Bays Yes
Memory
Standard Memory 96 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 6
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4114
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
