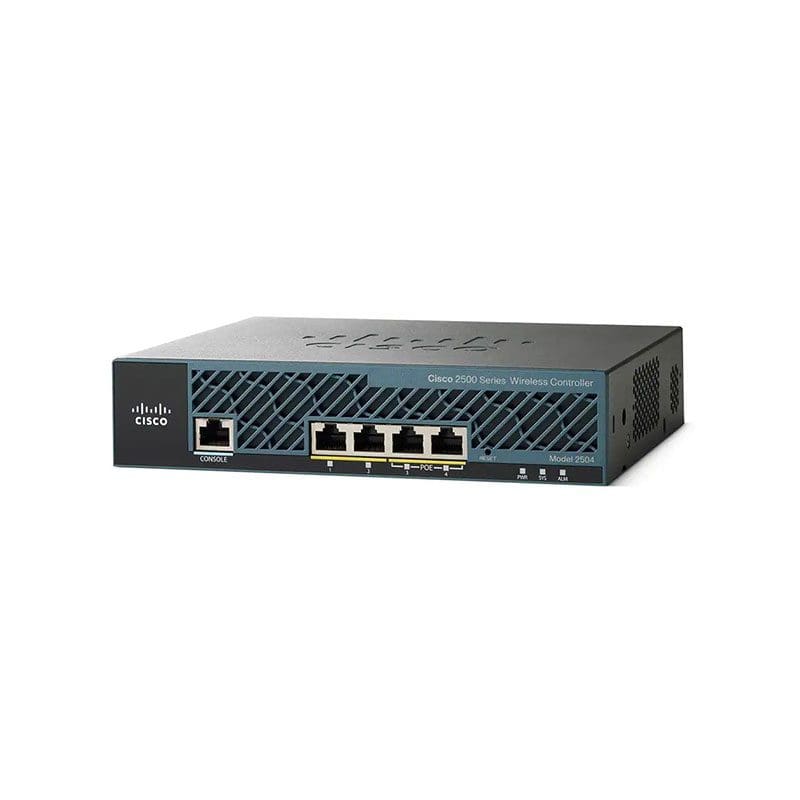

Refurbished AIRCT2504-702I-E5 Cisco 2504 Wireless Controller
Refurbished AIRCT2504-702I-E5 Overview
Cisco 2504 Wireless Controller – network management device – with 5 x Cisco Aironet 700 Series Access Point
Refurbished AIRCT2504-702I-E5 Technical Specification
Cisco 2504 Wireless Controller
Networking
Form Factor External
Ports Qty 4
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
Status Indicators Power, system, alarm, link/activity
Features DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, IPv6 support, Intrusion Prevention System (IPS), SNTP support, Wi-Fi Multimedia (WMM) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), CAPWAP support
Encryption Algorithm DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC
Authentication Method RADIUS, X.509 certificates, TACACS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 95% (non-condensing)
General
Device Type Network management device
Height (Rack Units) 1U
Width 8 in
Depth 10.7 in
Height 1.7 in
Bundled with 5 x Cisco Aironet 700 Series Access Point
Expansion / Connectivity
Interfaces 1 x management – RJ-45 ¦ 2 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T – RJ-45
Power
Power Over Ethernet (PoE) Supported PoE
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
